iFDC - 4 Doors

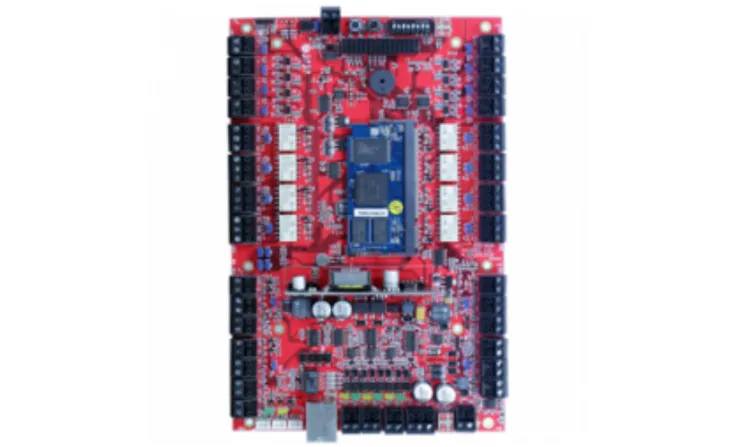

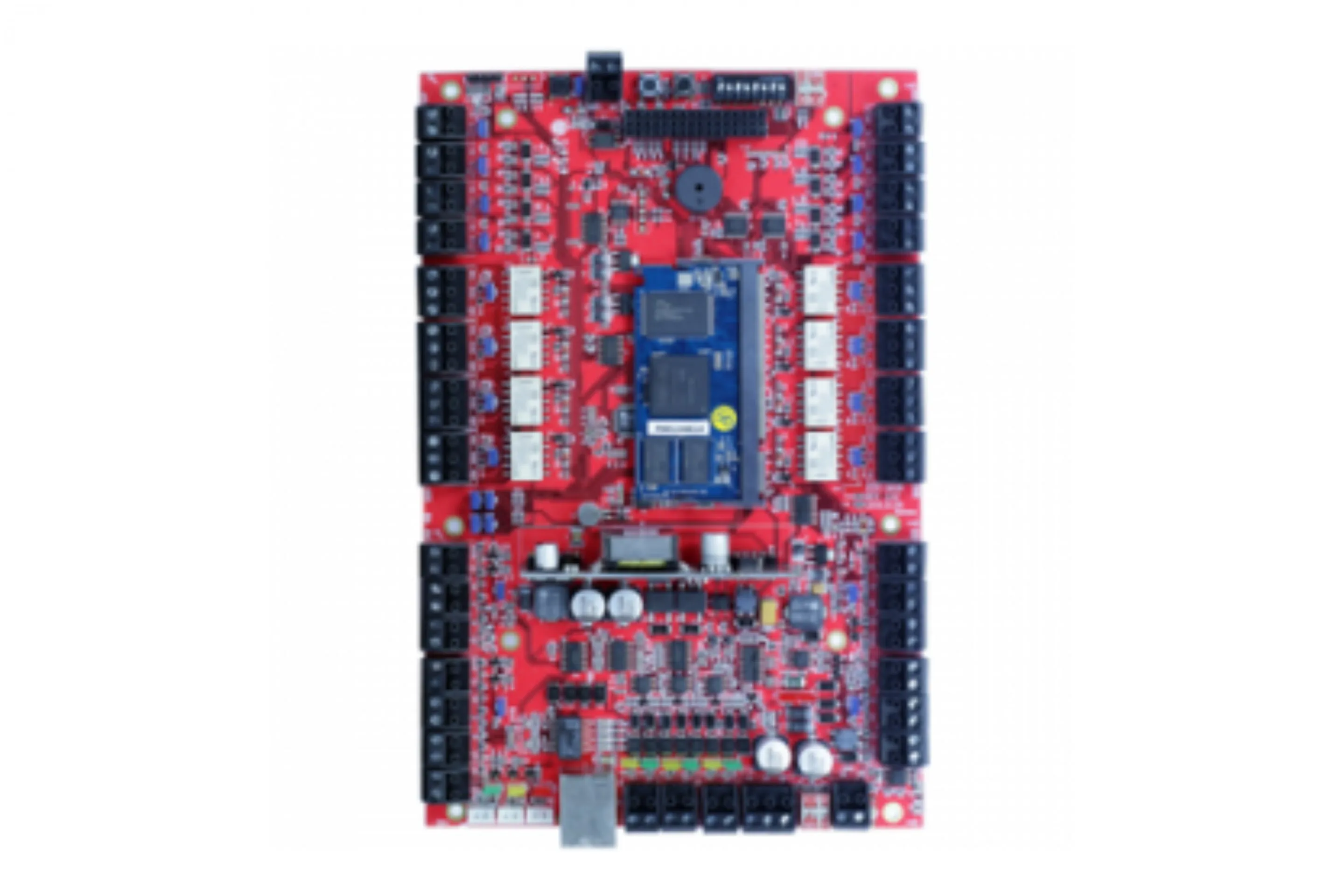

4 DOORS ACCESS CONTROL PANEL
System Features :
• Up to 4 Door Access Control Panel
• Linux Operating System Applied for Higher System Performance and Stability
• ERIO (Expansion Readers / Supervised 4-State Inputs / Outputs Board)
- Required for Controllong 5-8 Door
- Additional 4 Readers, 8 Supervised 4
- State Inputs, 8 Outputs Supports Expansion board IFDC ( Required for controlling 5-8 doors)
• Embedded Web Server
- Various Configuration Setting via Web
- Operation without installation of Management software
• POE (Power over Ethernet)
- PoE Plus(802.3at), Max 30W(2.5A)
• Automatic System Reset via Self-Diagnosis (Watchdog Function)
• Programmable up to 27 different Wiegand Data Formats (up to 53 bits)
• Encrypted Data Transmission (AES 256bit) between IFDC and Communication Server
• 8 Supervised 4-State Input / 8 Output Ports
• LED / Buzzer Control
• Up to 100,000 User IDs/Up to 100,000 Event Buffers
• Local/Zone/Area/Global/Timed/Soft Anti-Passback
• Duress Mode ·2 Men-Operation Function
• Arm/Disarm Function
• Guard Tour Function
• Advanced Security Time Schedule Configuration
• Configuration Setting per ID
- Time Schedule, Card Usage Expiration Data, Accessible Reader, Door Opening Time, etc.
• Event Priority Setting
• Alerts when Door Opening Time Exceeds and Forced Door Open
• Real-Time Monitoring of Access Door Status / User Access Status / Alarm Status using the Management Software
• Lost / Stolen Card Setting *
• Designed to Withstand ESD(Electro Static Discharge) Shock
• Firmware Upgrade via Remote Control

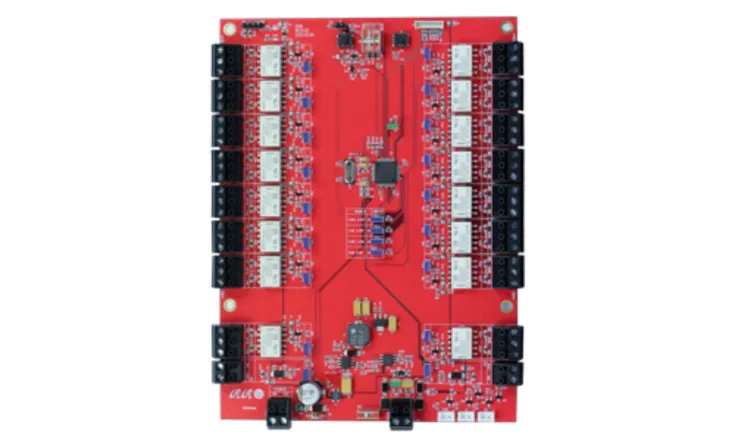

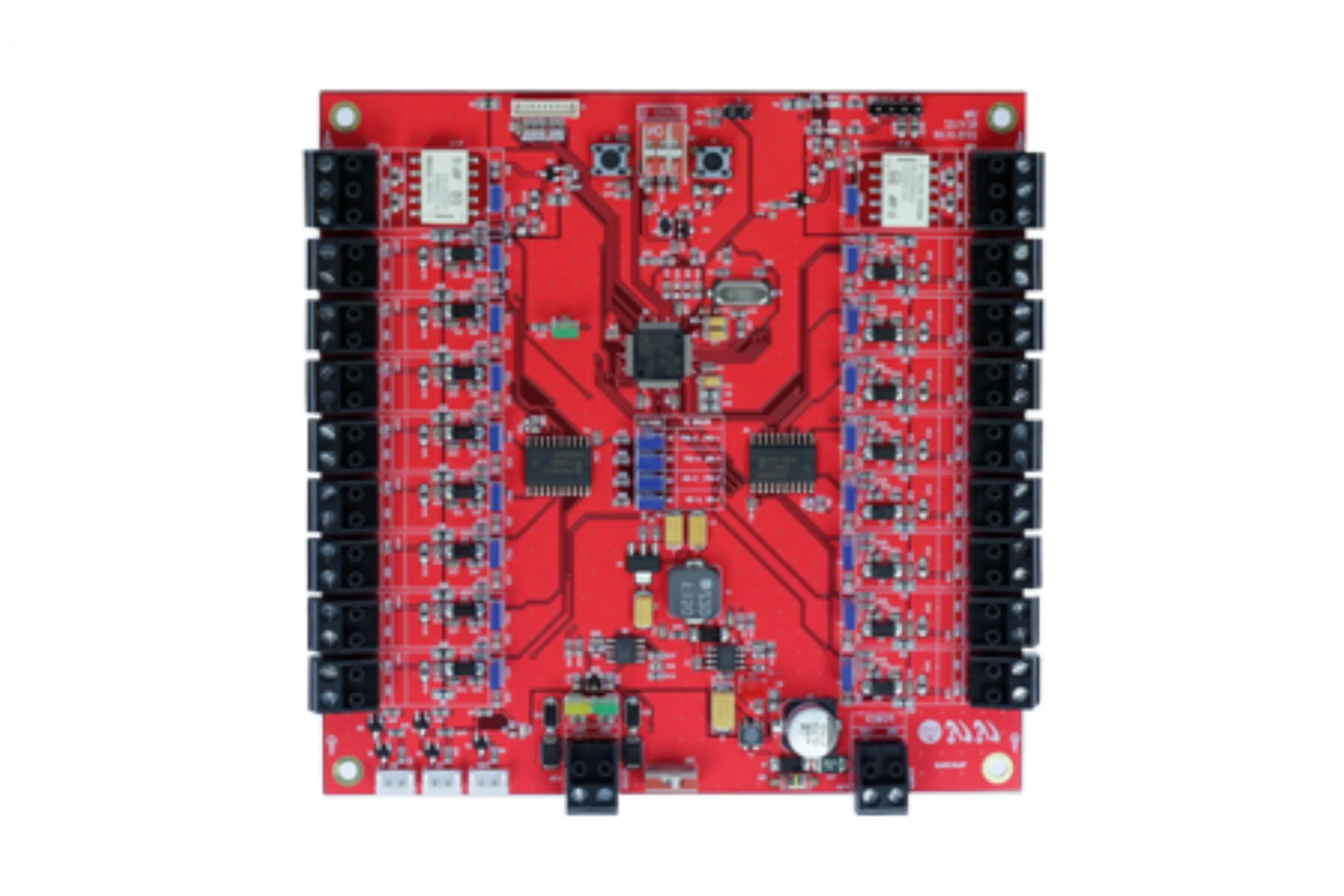

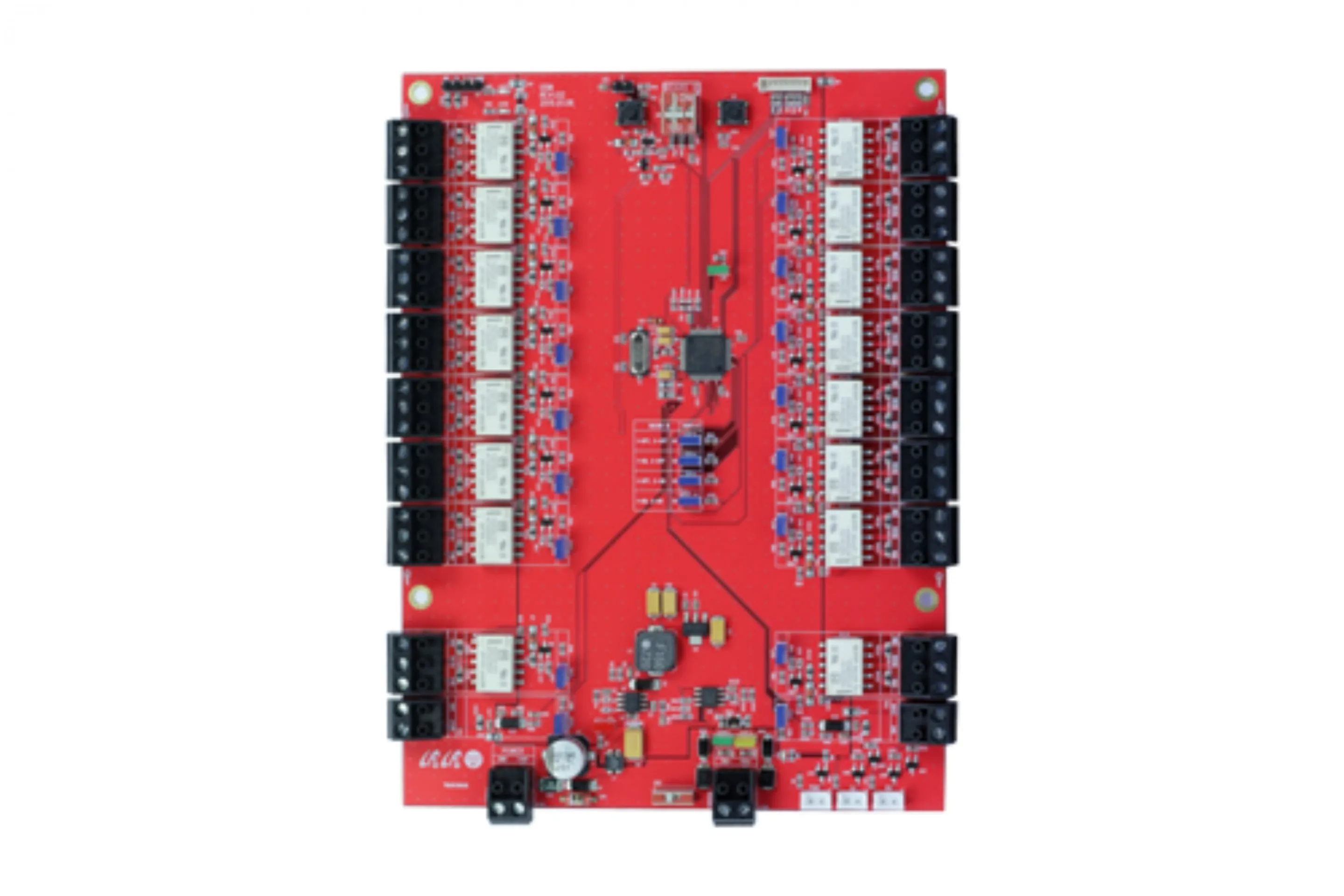

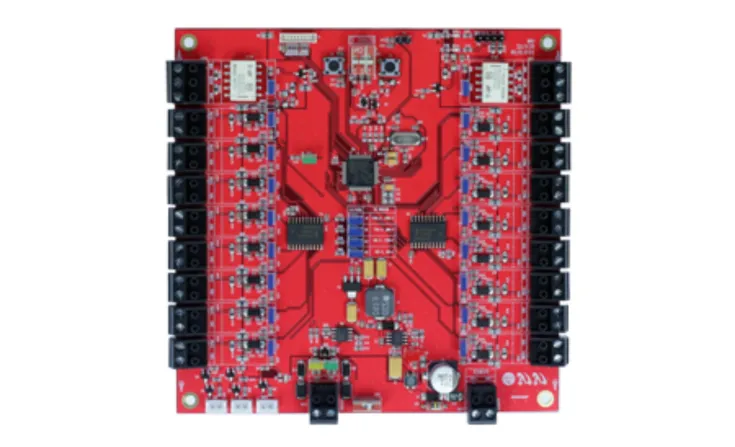

• Supports Expansion Input Board (UIM) / Expansion Output Board (UOM)
- UIM : 16 Inputs, 2 Outputs / Up to 4 UIM per IFDC
- UOM : 16 Outputs, 2 Inputs / Up to 4 UOM per IFDC
• Ethernet / RS232 / RS485 Communication
• Compatible Software IDTECK ENTERPRISE
• Supports Elevator Access Control System
