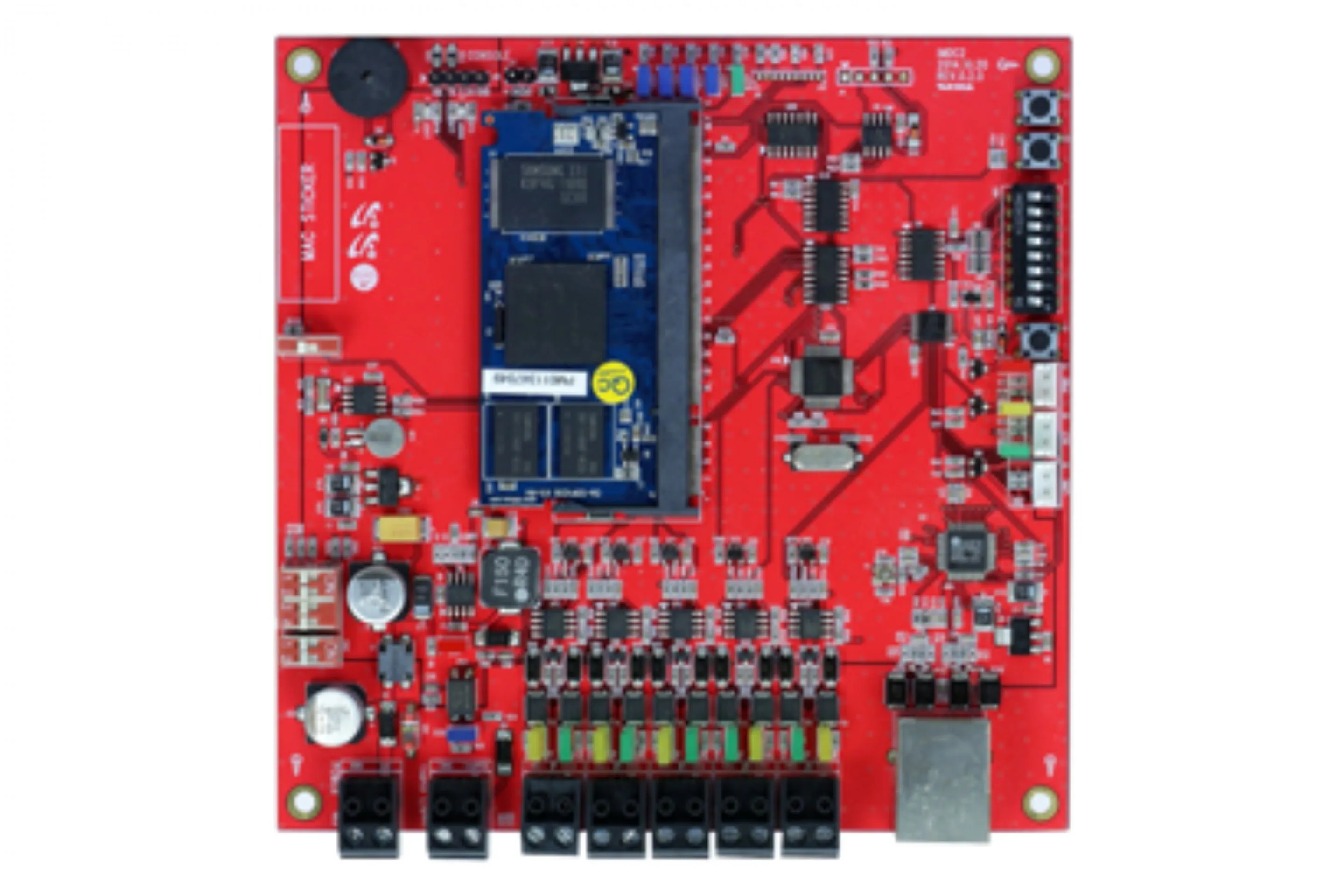

iMDC - 32 Doors
32 DOORS ACCESS CONTROL PANEL
System Features :
• Up to 32 Door Access Control Panel
• Expandable Up to 32 Readers / 128 Inputs / 128 Outputs

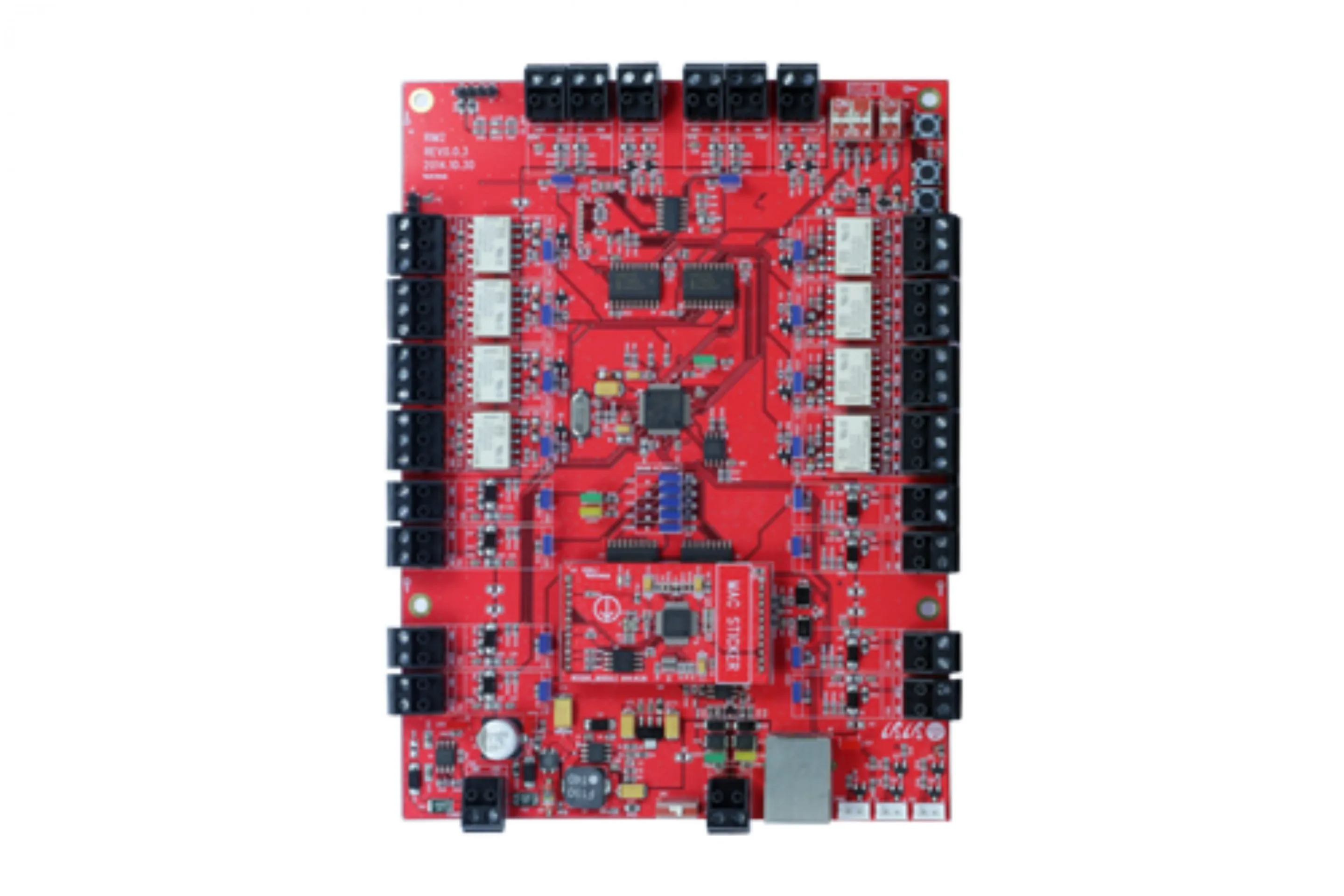

• IMDC-RIM (Remote Interface Module)
- Connect Up to 16 İMDC-RIM per İMDC-MAIN
- 2 Readers / 8 Inputs / 8 Outputs - Ethernet (TCP/IP) Communication
- Serial (RS485) Communication Supported in IMDC-RIM v3.00 or later
- LED / Buzzer Control : Supported in IMDC-RIM v3.00 or later
• Programmable up to 27 different Wiegand Data Formats (up to 53 bits)
• Linux Operating System Applied for Higher System Performance and Stability
• Single or Multiple IMDC Network Communication via Ethernet (TCP/IP)
• Easy System Expansion as IMDC-MAIN and IMDC-RIM are Separated
• Fault Tolerant System Applied to Provide Stable Performance even during the System Failure
- Able to set up for Redundant between IMDC-MAIN and IMDC-RIM Ethernet (not IMDC- RIM Serial)
- User Configurable Relay Output available for device (IMDC-RIM Ethernet) Error
- Self-Diagnosis of device to automatically reset the system (Watchdog Function)
• Encrypted Data Transmission (AES 256bit) between IIMDC-Main and Communication Server
• Up to 200,000 User IDs /Up to 200,000 Event Buffers
• IMDC supports various Global Wiegand Formats (i.e. 26Bit, 32Bit, 34Bit, 35Bit, and 37Bit.)
• Global / Zone / Timed / Soft / Hard Anti-Passback
• Arm/Disarm Function (2-4 Digit) • 2 Men-Operation Function
• Duress Mode (2-4 Digit)
• Guard Tour Function
• Advanced Security Time Schedule Configuration
• 255 Time Schedules
• Elevator Control
• Configuration Setting per ID
- Time Schedule, Card Usage Expiration Data, Accessible Reader, Door Opening Time, etc.
• Event Priority Setting
• Alerts when Door Opening Time Exceeds and Forced Door Open
• Missing Cards Management
• Supervised 4-State Input (On/Off/Short/Cut)
• Designed to Withstand ESD(Electro Static Discharge) Shock
• Firmware Upgrade via Remote Control
• Compatible Software : IDTECK ENTERPRISE
