iTDC SR - 4 Doors

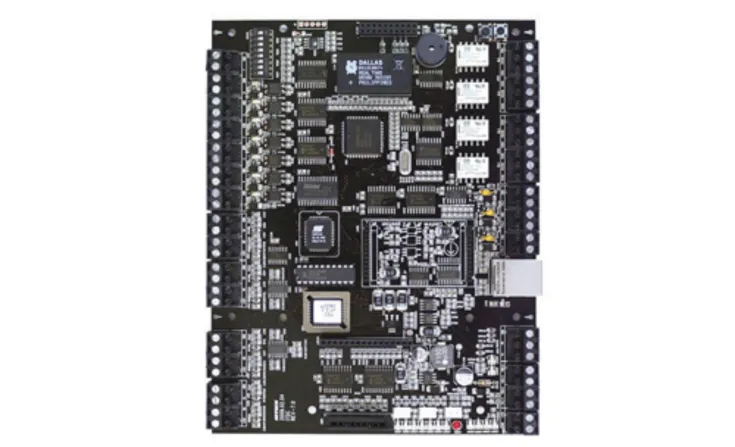

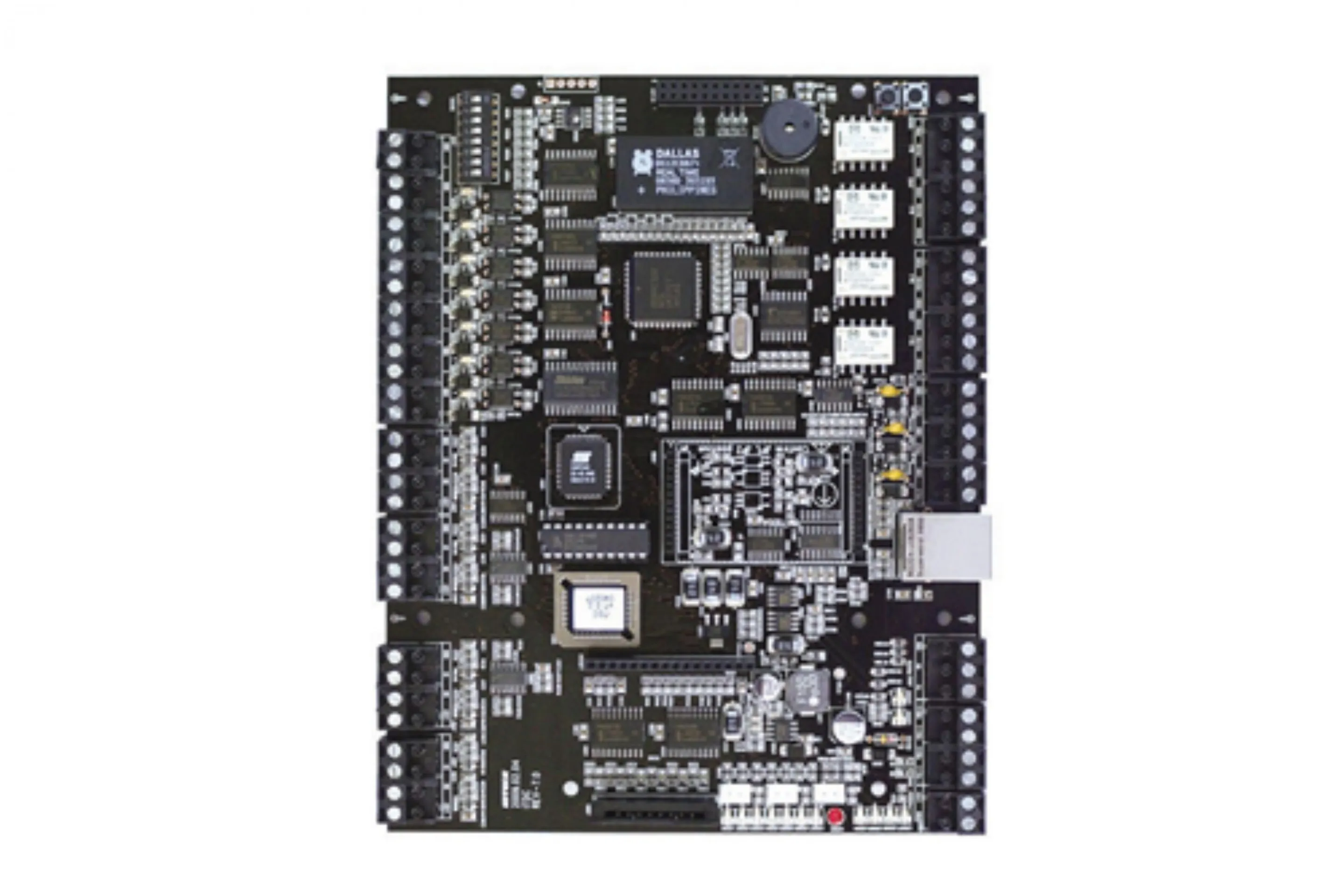

4 DOORS ACCESS CONTROL PANEL
System Features :
• Up to 4 Door Access Control Panel (EIOB8 Expansion Board Required for Controlling 3-4 Door)
• Up to 50,000 User IDs / Up to 29,500 Event Buffers
• Automatic System Reset via Self-Diagnosis (Watchdog Function)
• Up to 15 Input Ports / Up to 15.0utput Ports (With EIO88 Expansion Board)
• Optimized Communication Function
• Door Opening Time Configurable per User
- The door opening time is configurable by users, which is suitable for disabled or aged users
• Monitoring of Door Opening and Closing
• Real-Time Monitoring of Access Door Status / User Access Status / Alam Status using the Management Software
• Anti-Passback Function / Duress Mode / 2 Men-Operation Function
• Arm/Disarm Function
• 2-Status Input Check (On/Off)
• Time Schedule Configuration
• Alerts when Door Opening Time Exceeds and Forced Door Open
• Designed to Withstand ESD(Electro Static Discharge) Shock

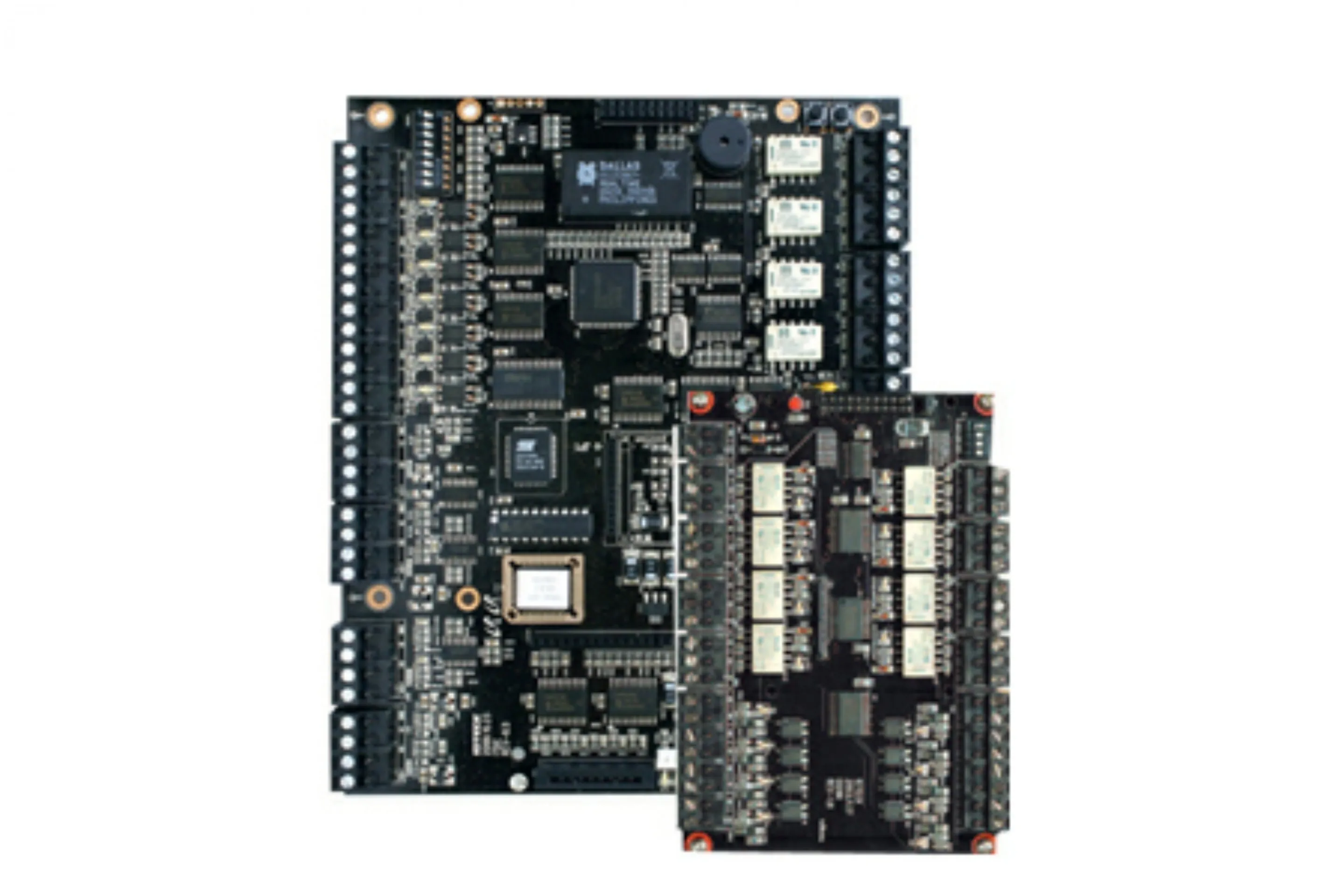

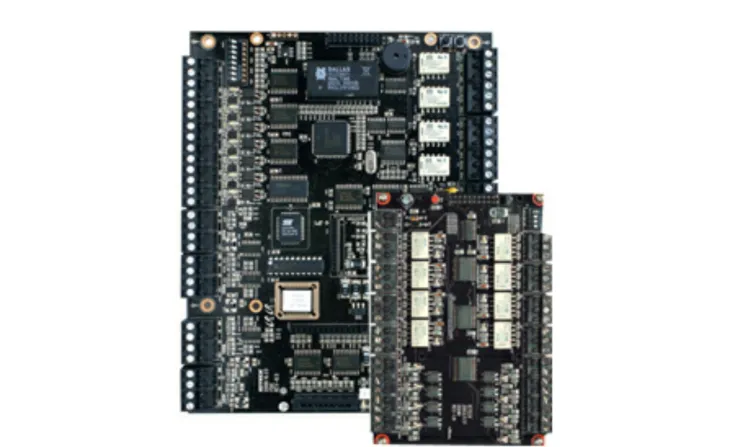

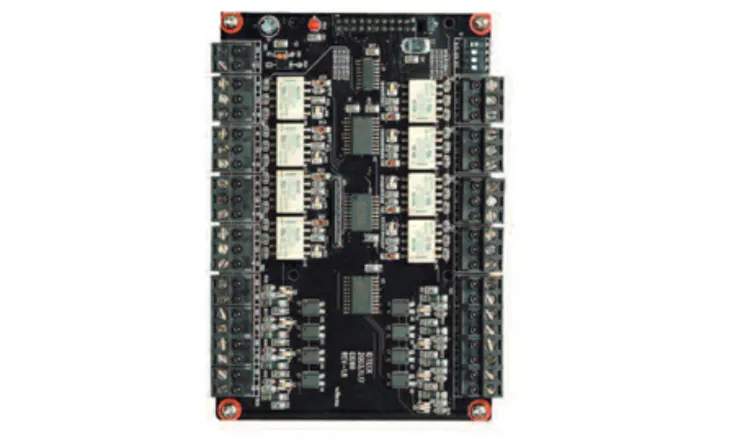

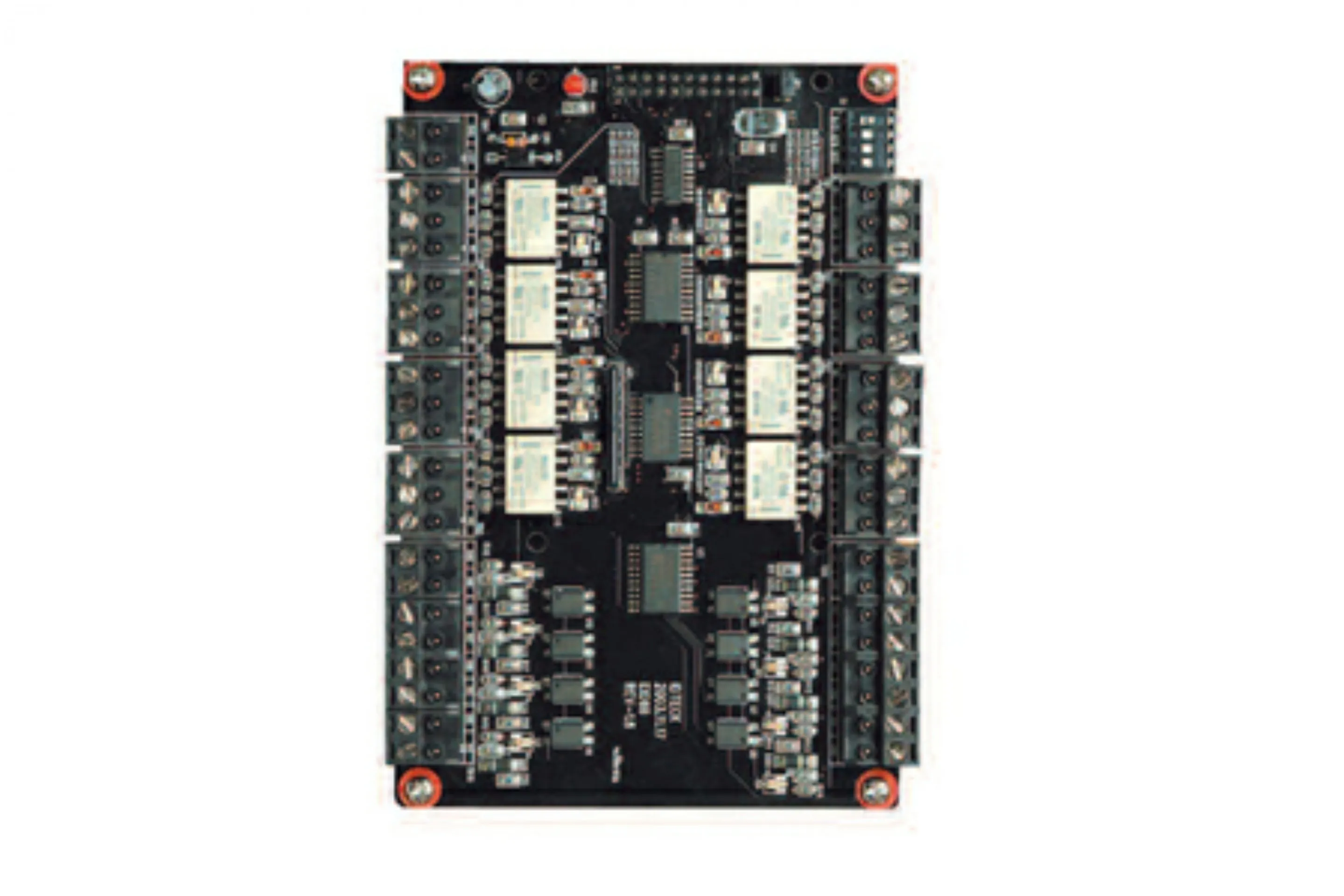

• Supports the EI088 (Expansion Board)
- 8 Inputs, 8 Outputs
- Required for Controlling 3-4 Doors
• Manual Configuration Available for Standalone Operation
• RS232 / RS422 / Ethernet(Optional) Communication
• Compatible Software : IDTECK STANDARD
