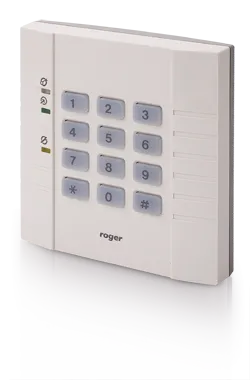

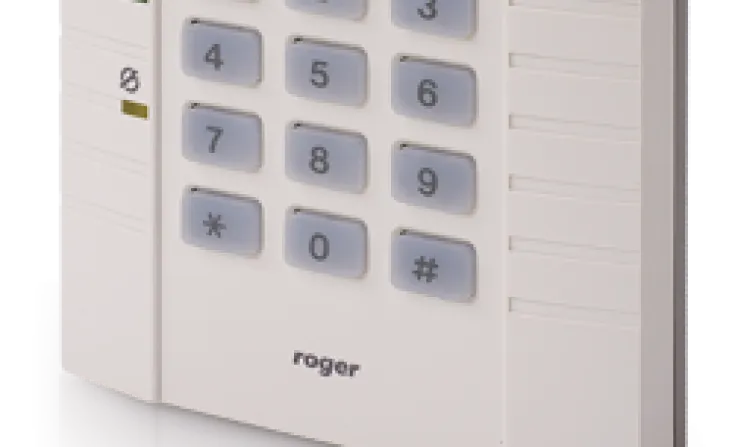

PR 301 - Reader
Indoor access controller, built-in EM 125 kHz proximity reader, bolted contacts, silicone keypad with backlight.
Features :
• built-in EM 125 kHz reader
• 250 user groups (CPR32-SE required)
• connection of one external reader
• 250.000 event buffer (CPR32-SE required)
• 12 VDC supply
• door operating modes: Normal, Locked, Unlocked, Conditional Unlocked
• three programmable NO/NC inputs
• user identification: Card or PIN, Card and PIN, Card only, PIN only
• two programmable 1 A transistor outputs
• fast programming (15 seconds per each controller in system)
• one programmable 1.5 A/3 0V relay output
• quick user editing (up to 3 seconds per each controller in system)
• RS485 communication bus
• integration of multiple access networks in one system (up to 250)
• free topology of communication bus (star or tree topology allowed)
• multiple networks doesn't increase system programming time
• 1000 users
• tamper
• 99 time schedules (CPR32-SE required)
• CE mark
