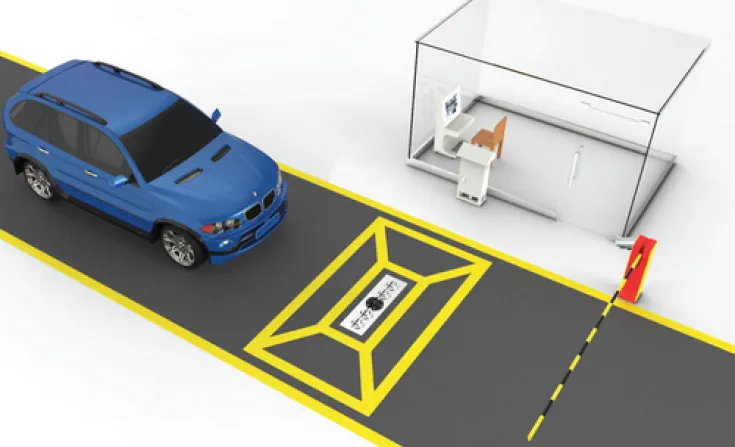

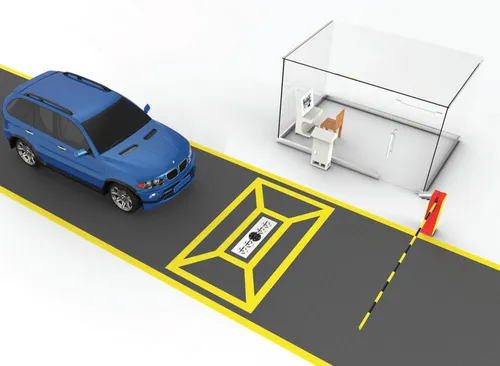

SA3300 Fixed UVSS

Highlight :
• Special air-drying circulation system
• Zoom capability, Full Scanning Image
• Weather proof scanning unit(IP 68)
• Anti-fog function
• Support to connect anti-collision system, barrier, etc
• Support to compatibly packing management solution

Specification of spare parts :
• Embedded screening units, Weather-proof : IP 68 ( color UVSS)
• Camera: Sensor : line scans CCD,
• Resolution : 5000*2048 pixels, Power Supply: 24VDC, 3A
• Pixel : 2096 x3 ; Type:Color
• Horizontal Frequency : 9K
• Min operate time : 110us
• Pixel size : 14um x 14um
• The length of the line array : 29mm
• Sampling bits wide : 8bit
• Dynamic Range : 76db
• Sensitivity : 15,21,37V/uJ/cm2(wave
• length=460/540.650) ; Lens Mount : F
• Transmission mode : (Gigabit Ethernet) /100m
• Power Dissipation : less 8W,12V
• Working Temperature : 0℃ to 60℃
• Illumination : LED, Power Supply: 24VDC,150W
• Size : 1200mm x 350mm
• Operating Temperature Range : -20 degree to +70 degree
