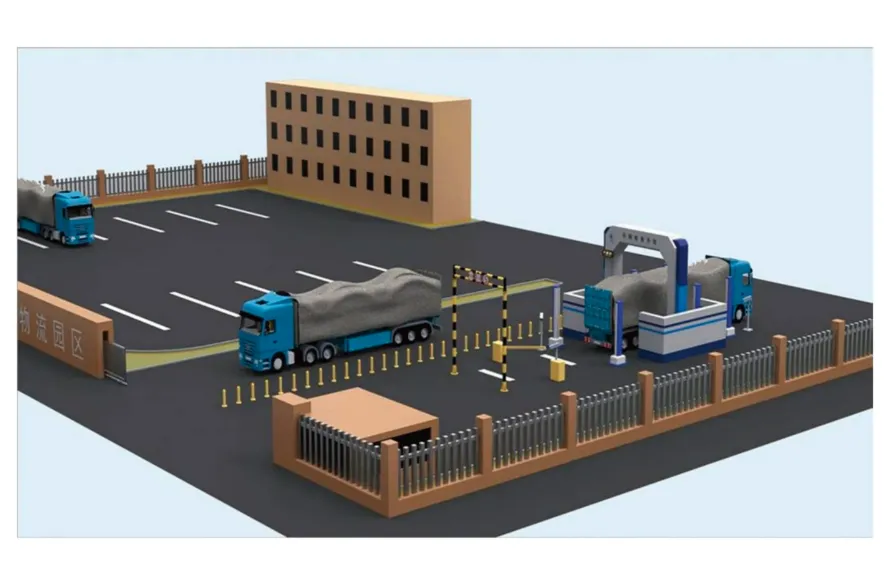

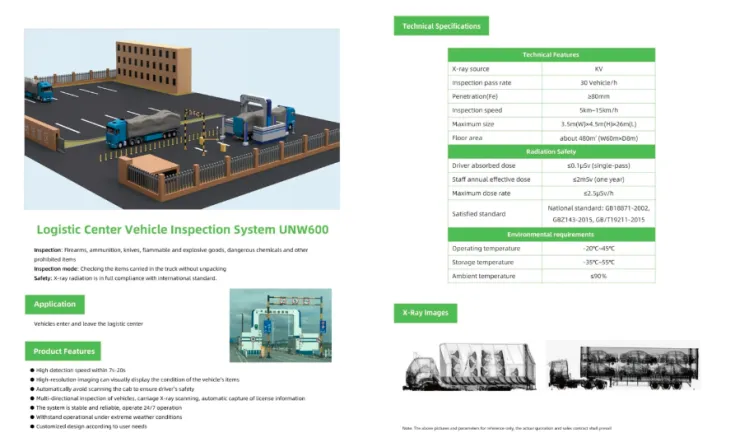

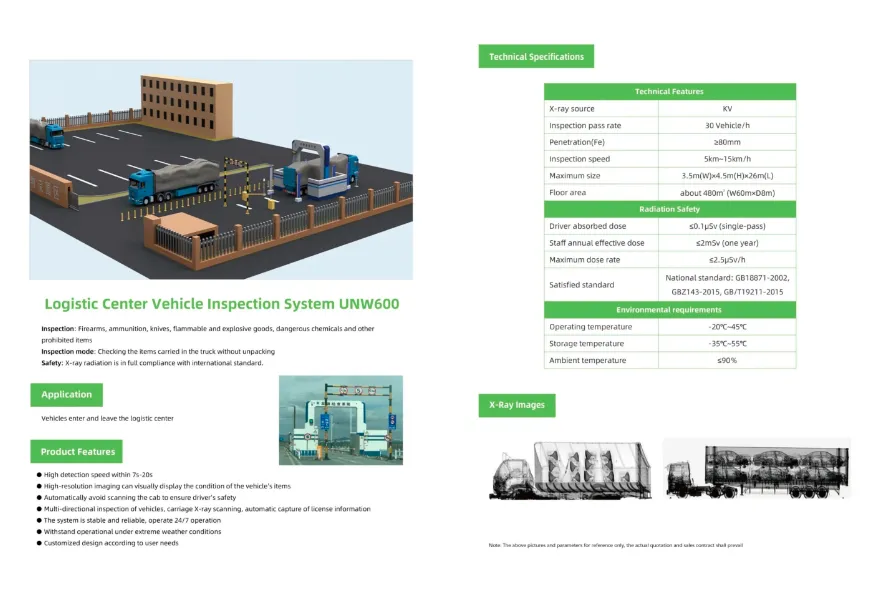

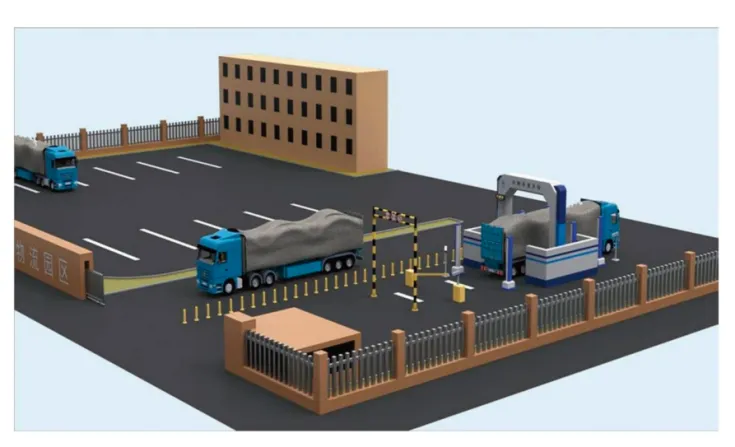

Logistic Center Vehicle Inspection System UNW600
Product Features :
• High detection speed within 7s-20s• High-resolution imaging can visually display the condition of the vehicle's items
• Automatically avoid scanning the cab to ensure driver’s safety
• Multi-directional inspection of vehicles, carriage X-ray scanning, automatic capture of license information
• The system is stable and reliable, operate 24/7 operation
• Withstand operational under extreme weather conditions
Technical Specifications :
Technical Features• X-ray source : KV
• Inspection pass rate : 30 Vehicle/h
• Penetration(Fe) : ≥80mm
• Inspection speed : 5km~15km/h
• Maximum size : 3.5m(W)×4.5m(H)×26m(L)
• Floor area : about 480m² (W60m×D8m)
Radiation Safety
• Driver absorbed dose : ≤0.1μSv (single-pass)
• Staff annual effective dose : ≤2mSv (one year)
• Maximum dose rate : ≤2.5μSv/h
• Satisfied standard : National standard: GB18871-2002, GBZ143-2015, GB/T19211-2015
Environmental requirements
• Operating temperature : -20℃~45℃
• Storage temperature : -35℃~55℃
• Ambient temperature : ≤90％
