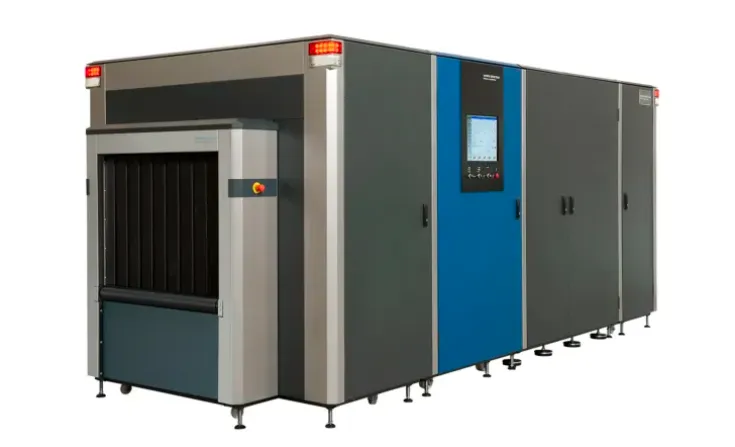

HI-SCAN 10080 XCT

Advanced CT explosives detection system

Feature Highlights :
• TSA Certified for high-speed checked baggage screening
• EU/ ECAC EDS Standard 3.0 and 3.1 approved
• Belt speed of 0.5m/sec (98.5ft/min)
• Throughput of up to 1,800 bags per hour
• Tunnel capable of screening objects 100 x 80cm
• Certified by STAC, DfT

Technical Specification :
Dimensions :
• 5,450 (L) x 2,300 (W) x 2,160 (H) [mm]
• 214.6 (L) x 90.6 (W) x 85 (H) [in]
Max. object size :
• 1,000 (W) x 800 (H) x 1,600 (L) [mm]
• 39.4 (W) x 31.5 (H) x 63 (L) [in]
• Out-of-Gauge (OOG) version object length up to 3,800mm (149.6in)
Weight :
• 7,730kg
• 17,041lbs
