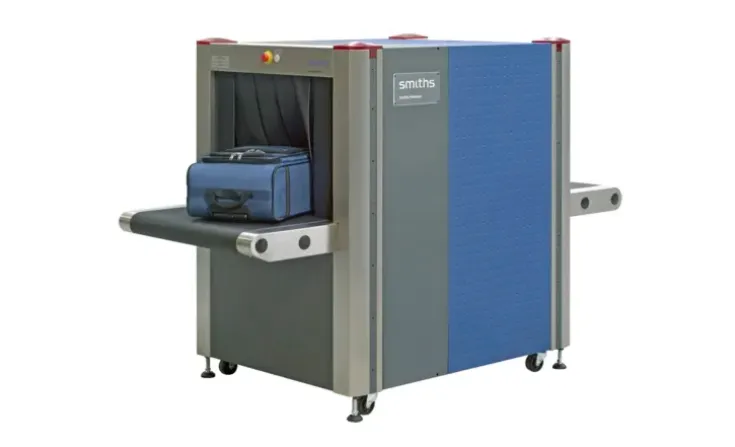

HI-SCAN 7555si

Advanced X-ray inspection

Feature Highlights :
• X-ray generator includes optimised spectrum
• High-resolution CRISP sensor technology
• HiTraX II system platform with extended scope of services
• High-resolution image display
• Up to 37mm steel penetration
• Wire detectability up to AWG 41

Technical Specification :
Max. object size :
• 750 (W) x 550 (H) [mm]

• 29.5 (W) x 21.7 (H) [in]
Dimensions :
• 2,120 (L) x 985 (W) x 1,445 (H) [mm]
• 83.5” (L) x 38.8 (W) x 56.9 (H) [in]
Weight :
• approx 580kg

• approx. 1,287.7lbs
