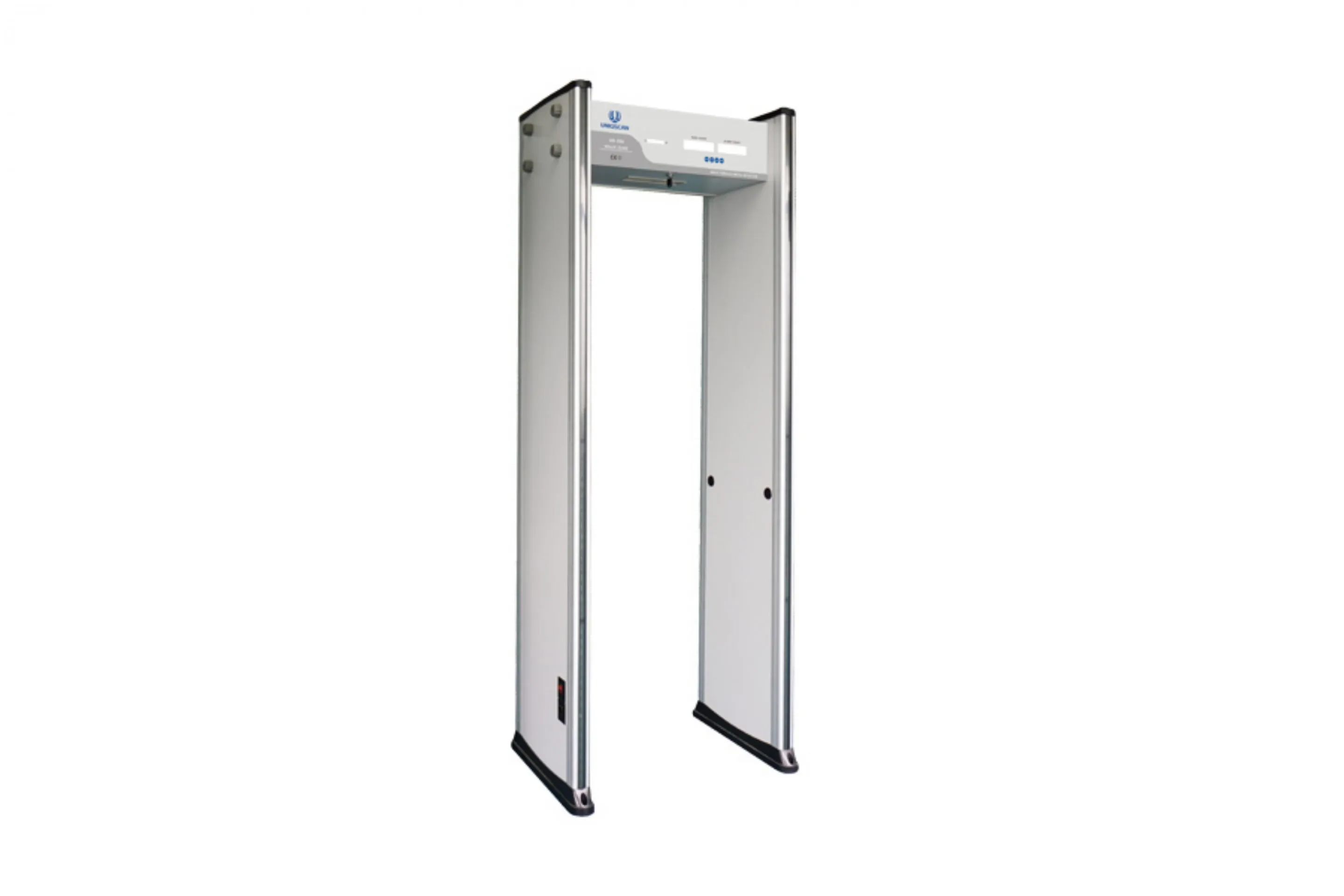

UB500 Walkthrough Metal Detector
Parameters :
• Detecting zone : 6 zone
• Display way : 5 digital LED count
• Sensitivity : 0-100 adjustable
• Power Supply : AC85V-264V
• Working temperature : -20ºC--+50ºC
• Working Frequency : 4KHZ-8KHZ
• Gross weight : 70KG
• Standard External size : 2200mm(H)X800mm(W)X580mm(D)
• Standard Internal size : 2010mm(H)X700mm(W)X500mm(D)
• Package size for door panels : 2260*650*260mm *1ctn
• Package size for control unit : 780*390*250 mm*1ctn
Characteristic & Function :
• Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable : Each zone has 100 sensitivity level
• Sound & LED alarm : Both Side LED indicator, easily show where the metal is.
• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly : designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body : is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design, easy for maintenance and replacement.
• Sensitivity Test piece : One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)
