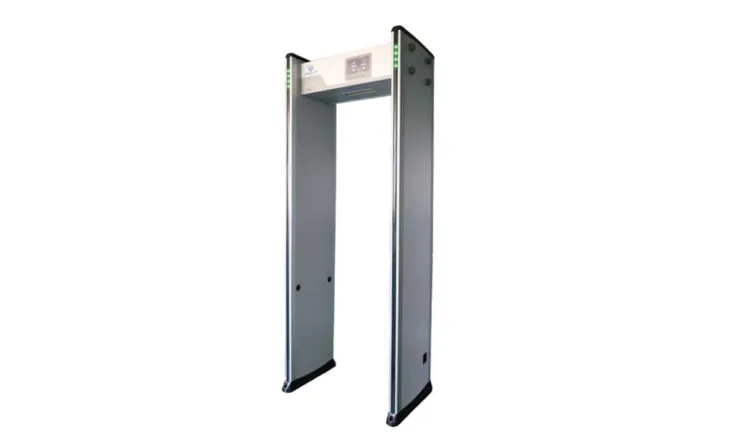

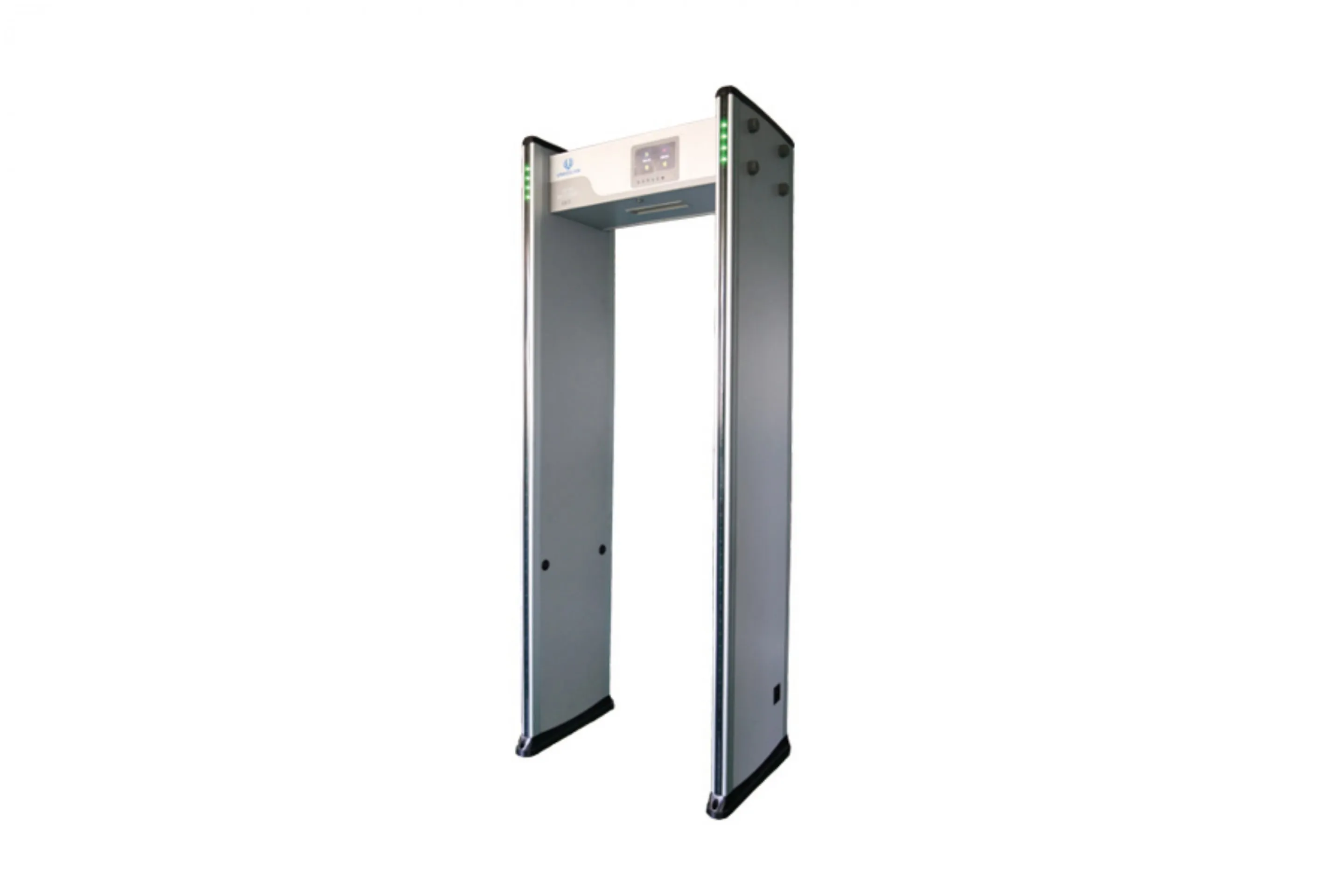

UB800 Walkthrough Metal Detector

Parameters :
• Detecting zone : 33 zone
• Display way : 7 inch LCD
• Sensitivity : 0-999 adjustable
• Power Supply : AC85V-264V
• Working temperature : -20ºC--+50ºC
• Working Frequency : 4KHZ-8KHZ
• Gross weight : 70KG
• Standard External size : 2200mm(H)X800mm(W)X580mm(D)
• Standard Internal size : 2010mm(H)X700mm(W)X500mm(D)
• Package size for door panels : 2260*650*260mm *1ctn
• Package size for control unit : 780*390*250 mm*1ctn

Characteristic & Function :
• Thirty Three mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 999 sensitivity level
• Sound & LED alarm: Both Side LED indicator, easily show where the metal is.
• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design,easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• Battery backup: 4-8 hours backup battery (Option)
