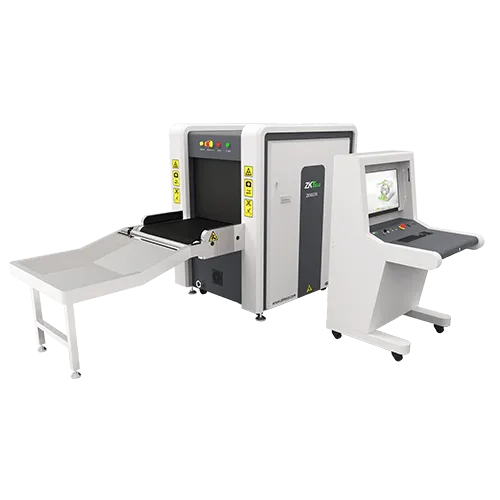

ZKX6550

Dual Energy X-ray Inspection System

Specifications :
• Tunnel Size (W*H) : 655*505 (mm )
• Speed : 0.20 m/s
• Height of Transmission Belt : 700 mm
• Maximum Load : ≤180 kg (Adequate distribution)
• Wire Resolution : 40 AWG (0.0787mm metal wire)
• Space Definition : Horizontal Φ1.0mm \ Vertical Φ2.0mm
• Penetrate Definition : 34 AWG
• Penetration : 38mm Steel board
• Monitor : 21.5 inch LED
• System Function : High density alarm, Explosive/Drug auxiliary detect, TIP, Luggage counter, System running timer, X-ray emitting timer, Training, 64 times continuous zoom in
• Film Safety : ASA/ISO1600 standard of film safety
• Supported Software : ZKBio SIS
• Communication Interface : RJ45 (TCP/IP)

X-ray System :
• Tube Voltage : 150 KV
• Cooling : Seal oil cooling / 100%
• Single Inspection Dosage Rate : ≤1.0 μ Gy
• Radiation Leak Dosage : 0.1 μ Gy/h (5cm from the surface)

Installation Specification :
• Size (L*W*H) : 2120*980*1381 (mm)
• Package Size (L*W*H) : 2240*1170*1755 (mm)
• Console Desk Size (L*W*H) : 805*900*1320 (mm)
• Package Weight : 680KG+105KG (Console desk)
• Power Consumption : 1 kVA
• Noise : 53.8 dB(A)
