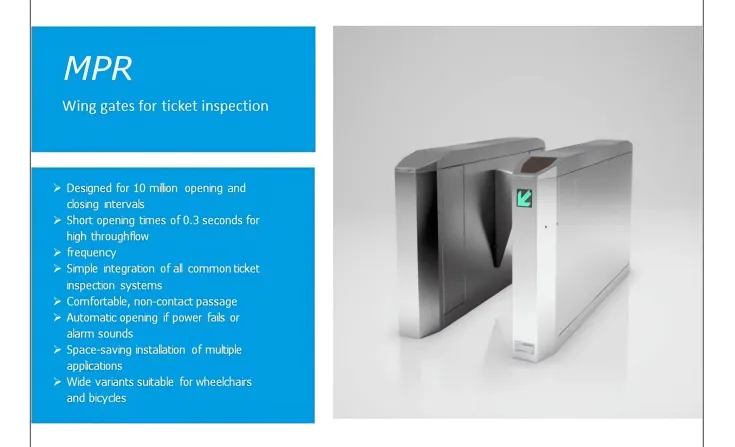

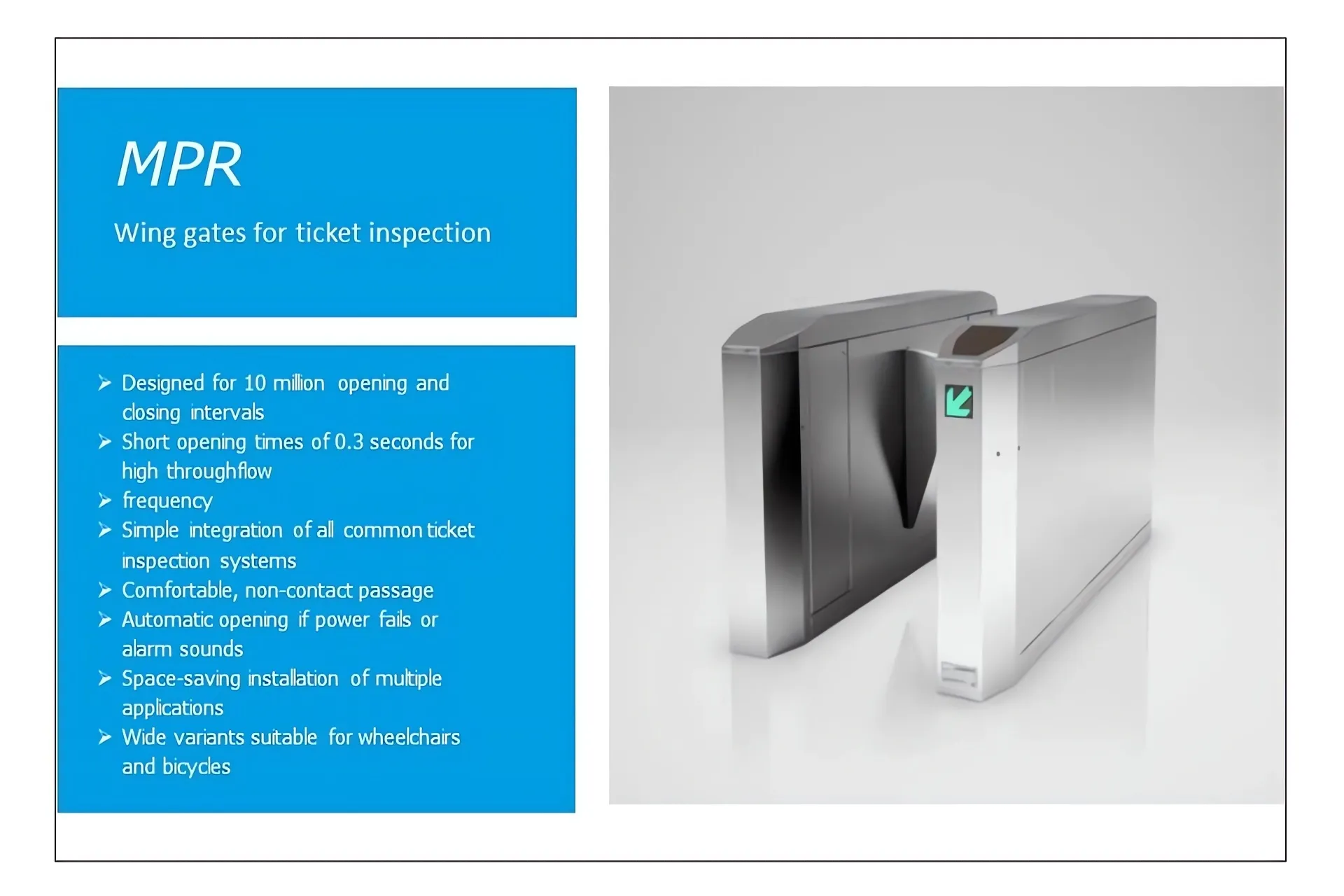

Flap Gate - Magnetic

For rapid automatic ticket inspection

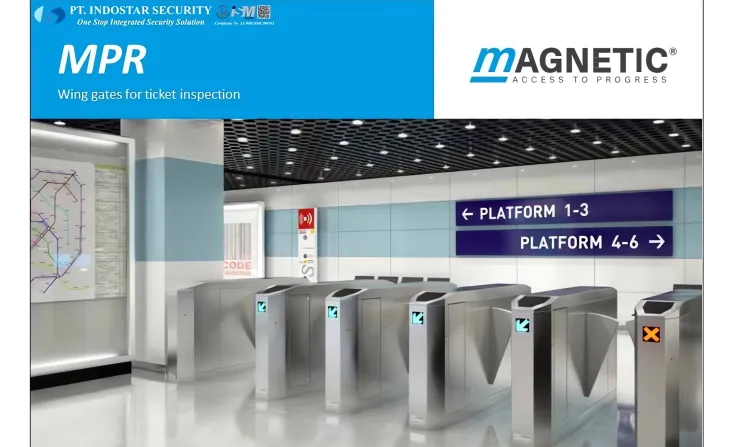

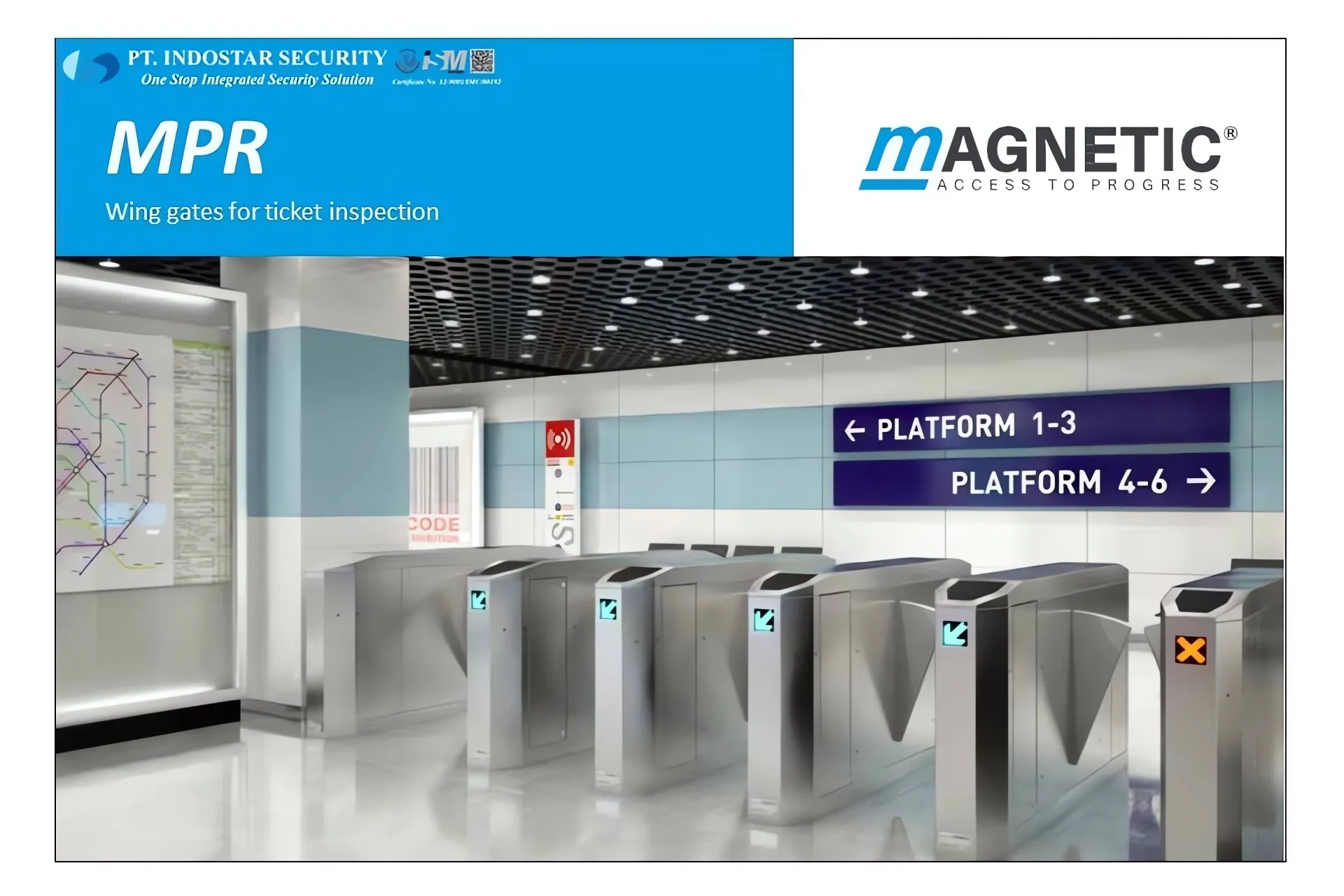

This MPR design has been specially developed for inspecting tickets at public transport facilities, where it is important to achieve rapid and non-contact individualisation. The housings, made of high-quality polished stainless steel are 2 m long and available in two widths for standard or wheelchair-accessible passageways. All components for operation are integrated within the barrier, considerably accelerating installation and commissioning. The MPR offers sufficient space for the reading devices and ticket systems used in public transport systems, and can be adapted to customer requirements, if desired.

The innovative MHTMTM drive is maintenance-free, energy-efficient and very quiet. Injuries and damage are reliably prevented due to its sensitive impact detection that meets European stand ards. The integrated control system can be operated with all common ticket systems and offers bidirectional operation as standard. A large number of photoelectric switches in the passageway de- pendably monitor the passage process and detect unauthorised use, such as persons attempting to follow through, passage in the wrong direction, or unauthorised entry.
