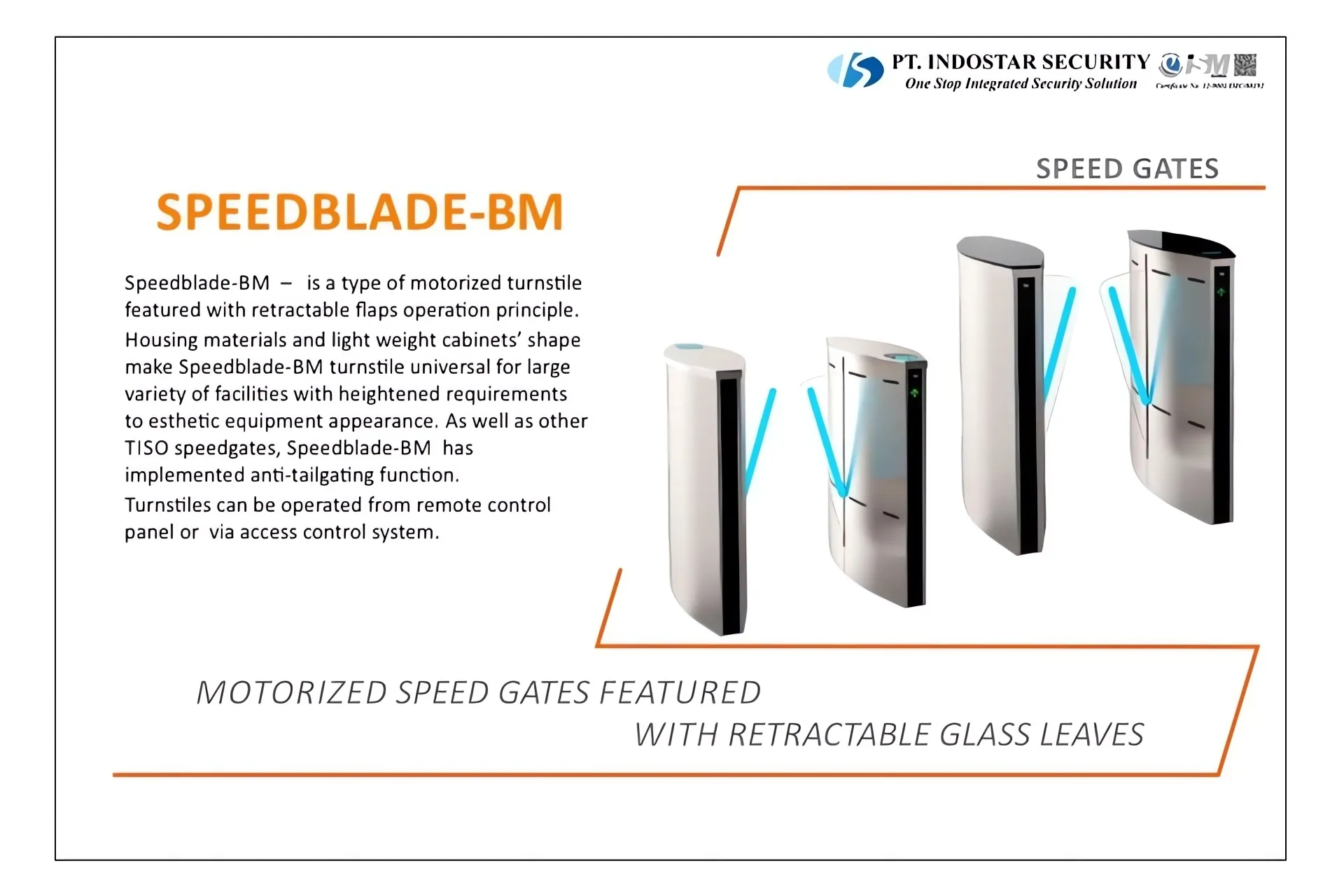

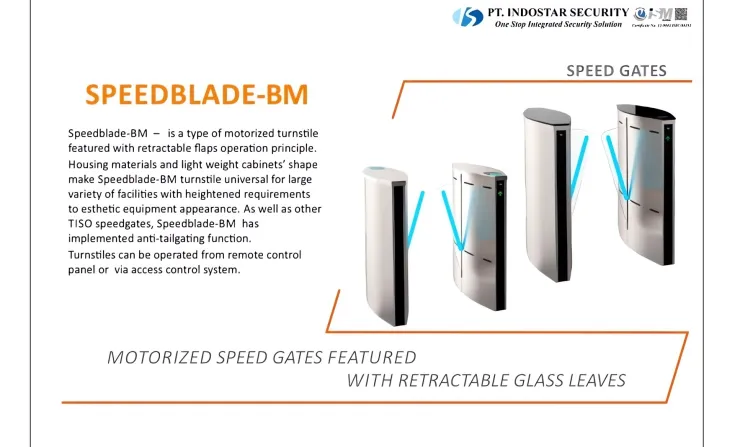

Flap Gate - Tiso
Key advantages
• High speed of leaf opening / closing within 0.5 sec provides high flow rate;
• Robust locking system DeadLock® prevents manually opening of leaves in case of vandalism;
• The width of the turnstile passage has been increased to 600 mm;
• The smart self-diagnosing system of mechanism BMDrive® automatically analyzes the system, detects critical malfunctions, and records error log and warnings;
• The BMDrive® mechanism controller is equipped with an OLED display for easy setup and configuration without special programmers, also a full configuration and diagnostics is possible via a USB connector by using a service so ware for Windows OS;
• Digital control of force and leaf speed in combination with four safety sensors prevent a passing person from being struck by a leaf, even in case of an unauthorized passage;
• By use of artificial intelligence algorithms and large number of high-precision infrared access sensors, the SpeedBlade-BM turnstile detects and alarms when two people try to pass by one card, pass in the wrong direction or pass without authorization;
• Sensor system allows detecting the passage of person with luggage, arranging a free exit without the need for identification;
• Elegant cabinets equipped with integrated LED lighting
- DotLights® - LED lighting display showing access status
- RFIDLights® - LED Light of card reader area
- LeafLights® - LED lighting of leaves showing access status;
• Streamlined and elegant oval design;
• Retractable leaves made of tempered safety glass;
• Successful combination of affordable price and high quality;
• Customized surface finish and top lid;
• Low power consumption;
• Can be integrated with any type of access control systems;
• Wired remote control panel in standard kit;
• In case of power failure, leaves could be opened manually (fail-safe)
Options
• passage counter
• Card collector integration
• Sound alarm
• MP3 audio module with micro SD card
• Weather pack - IP 54
• Ramped base mobile platform
