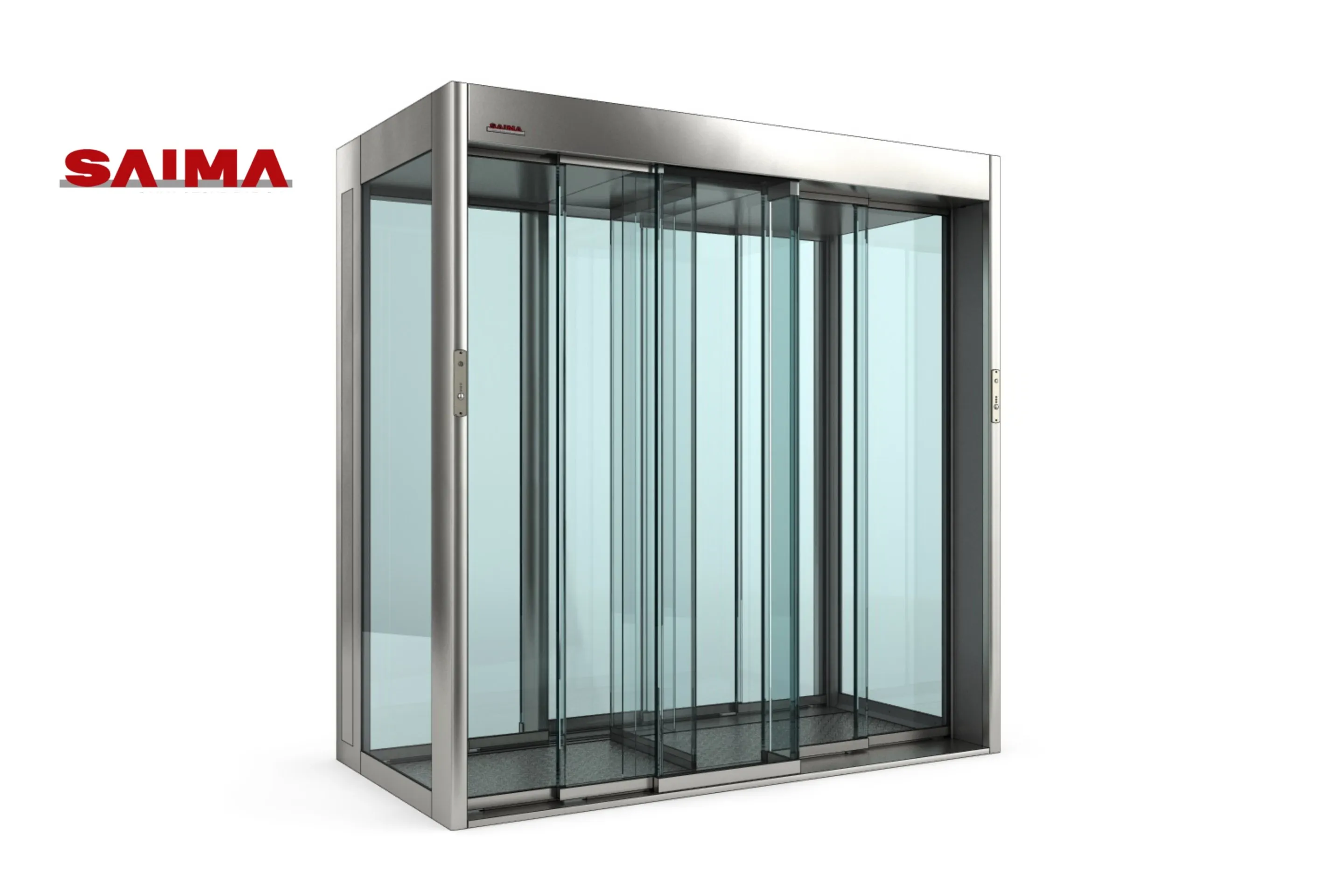

SAIMA Multitransito Light

The main features of the interlocking Multitransito Light door are the rectangular base and the telescopic doors offering dual access. Two entrances/exits are perfect for high throughput environments, especially if installation space is limited. With the Multitransito Light model, one 70 cm and one 90 cm wide passage are available in just over 2,5 square meters, or two 70 cm wide openings. The door’s telescopic motion is certainly a feature that makes user transit even smoother, and with the 90 cm of the second entrance wheelchair access can be ensured. Different kinds of finish are also available to be supplied on demand (for instance: gloss finish, stainless coating, bronze, aluminum etc...).

TECHNICAL FEATURES :
• Power Supply : 220V +/- 10%, 50Hz
• Maximum power absorb : 200W
• Working Temperature : - 10° C / 55° C
• Backup Battery : n. 2 7 Ah sealed lead-acid batteries to allow the right for functioning in case of lack of power.
• Motors : n.4 24Vcc motor for reversible movement of the wings, with closing safety lock. Opening of both the doors in case of emergency.
• Operating logic : programmable with microprocessor with n.3 lines RS232 (n.1 RS232 reserved), n.2 RS485.
• Accident prevention : sensors on vertical rod of the doors both of entrance and exit and control system which guarantees the regulation of the motors.
• Transit Speed :
- 6 passages per minute in one direction
- 12 passages per minute in both directions (such data do not consider the possible working times due to utilization of card/badge readers).

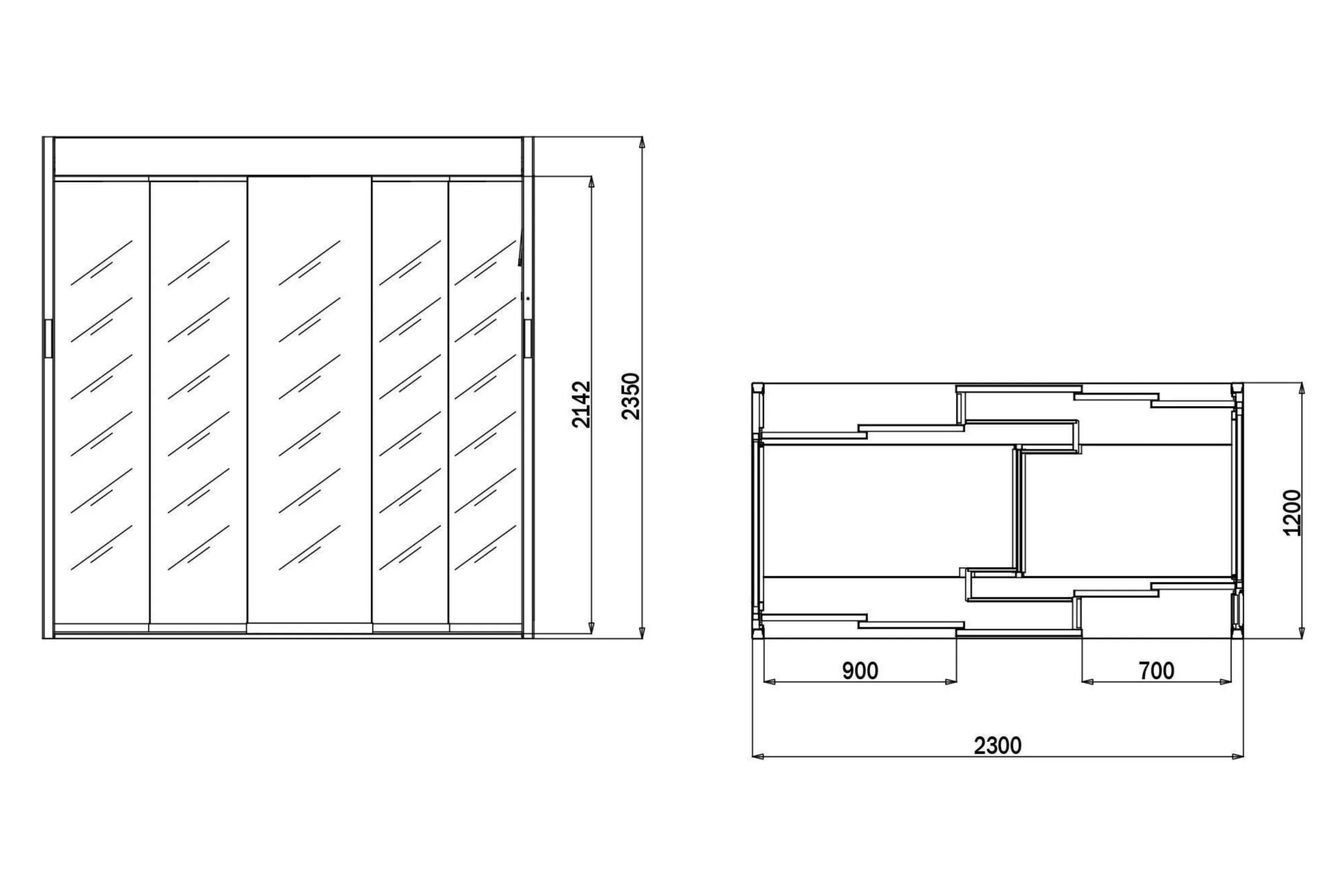

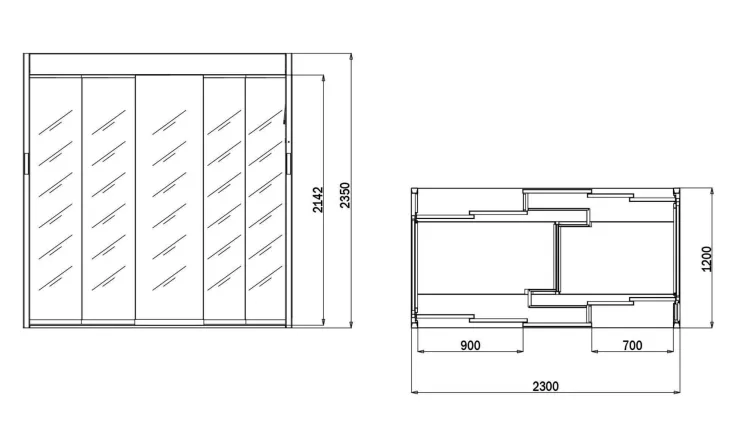

• Dimensions :
- Total dimensions (mm) : Height 2350 , Width 2300 , Depth 1200
- Passage dimensions (mm) : Height 2142 , Width 900 / 700
• Weight : 1850 Kg
• MCBF : 2 yrs. or 1 000 000 passages if the ordinary maintenance is properly applied.
• MTTR : 1h
