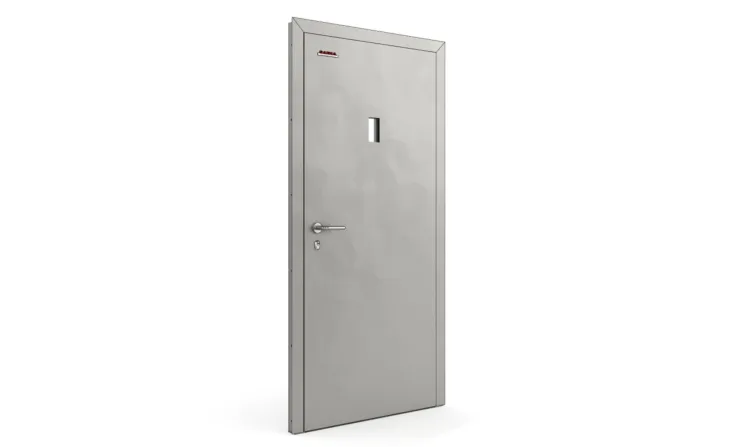

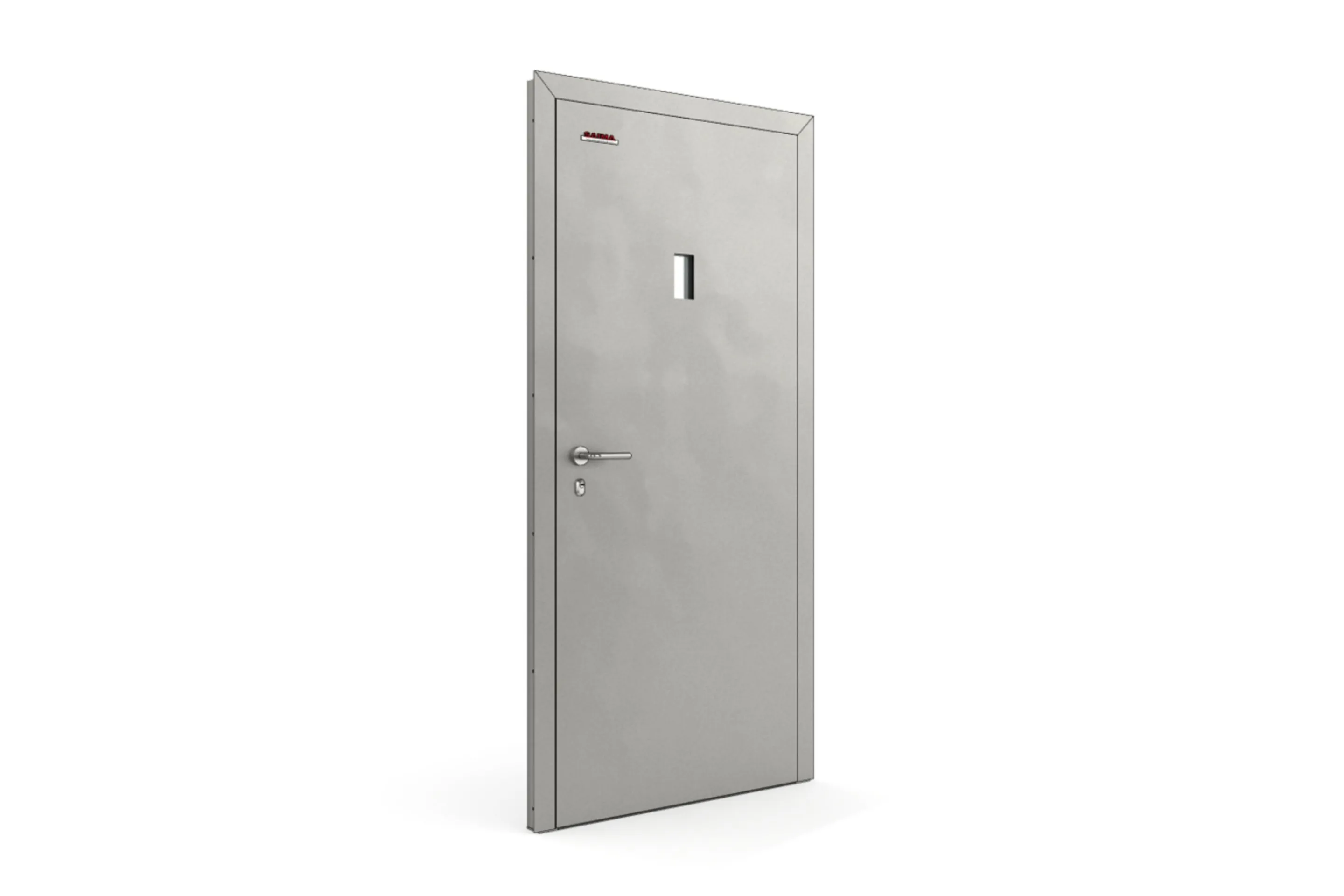

SAIMA SECURITY DOOR LTS
SECURITY DOOR CERTIFIED CLASS 4
STRUCTURE
Carrying structure realized in galvanized steel profiles thickness 20/10 mm, integrated by internal
horizontal supports realized with tubular tyres 50/60 mm X 2 mm and internal vertical supports in pressure folding sheet thickness 20/10 mm. Internal and external covering with galvanized steel sheets thickness 20/10 mm.
N. 1 mechanical lock with 3 points of closing.
N. 1 security electropiston.
N. 3 foldaway fasteners.
Security Certification class 4 obtained by getting through the tests provided for the rules UNI ENV 1627/2000, 1628/2000, 1630/2000.
TECHNICAL FEATURES :

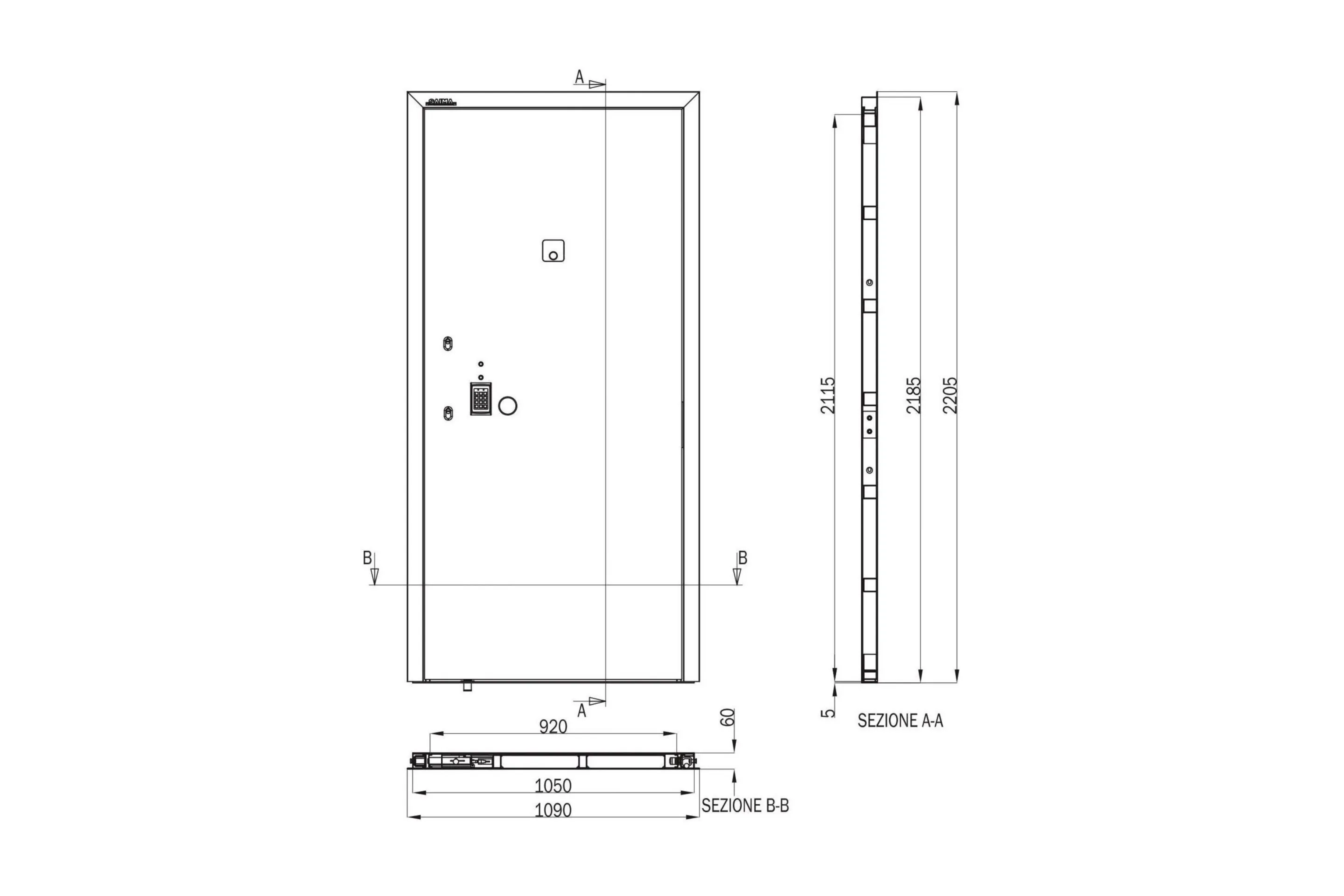

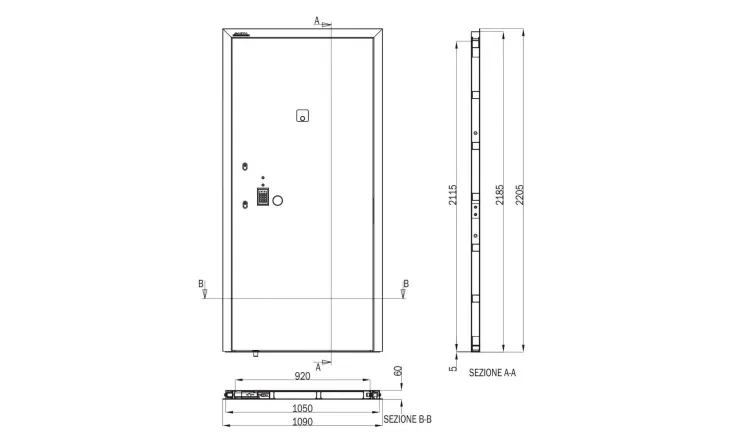

EXTERNAL OVERALL DIMENSIONS
• Width : 1050mm
• Height : 2185 mm
PASSAGE DIMENSIONS
• Width : 920 mm
• Height : 2115 mm
WEIGHT
• Weight : 200 Kg
FINISHING
RAL of series 9010.
