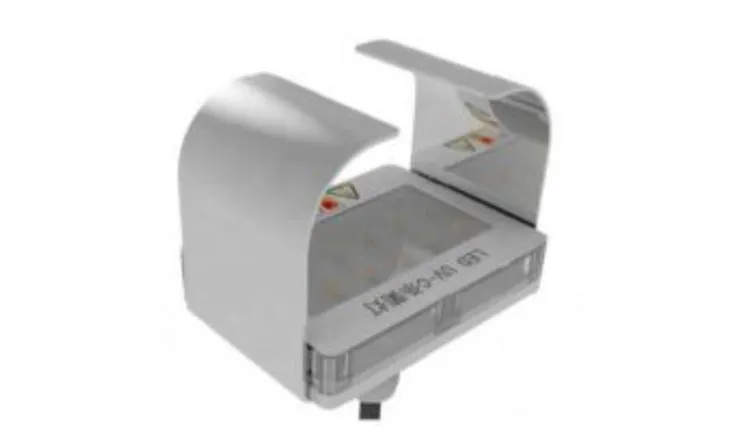

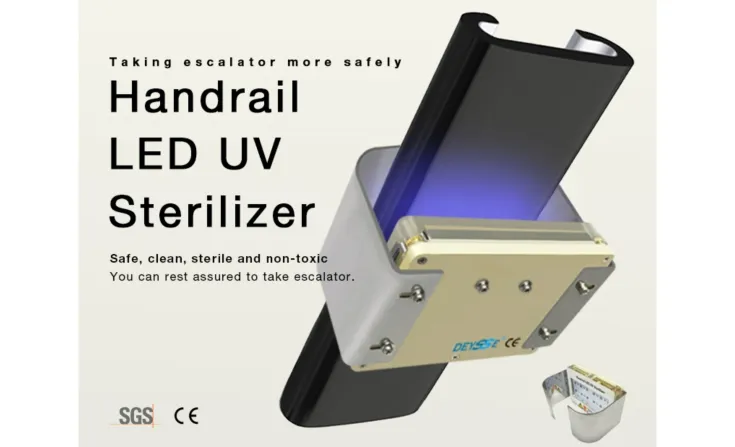

Handrail LED UV-C Sterilizer

DEYSSE - Escalator Handrail Sterilizer

Ultraviolet can be divided into long wave, medium wave and short wave according to the wavelength. The short wave ultraviolet has the bactericidal effect, which is generally 200~275nm range is the best waveband for sterilization. The principle of the UVC sterilization method is to damage the molecular structure of microbial cell’s (bacteria, virus and other pathogens) DNA and RNA.

Technical Parameters :

• Input Voltage : DC24V±10%
• Input Current : <0.15A
• Wave Length : 270~285nm
• LED Size : 3535 • LED Quantity : 12PCS
• Design Lifetime : 10000hrs
• IP Protecting Level : IP55
• Working Temperature : -25°C ~ +60°C
• Operation Relative Humidity : ≤95%
• Storage Environment : -30°C ~ +70°C
• Best Sterilization Distance : ≤25mm (Vertical distance between light emitting surface of lamp and handrail)
• Irradiation area : 100*50mm
• Initial Irrandiance : ≥45uw/cm2 ( @15mm )
• Irrandiance@10000Hrs : ≥40uw/cm2 ( @15mm )
• Material : PC & SUS304 & Quartz Glass
• Off and On time : >300,00 times
