iEDC - 8 Doors
8 DOORS ACCESS CONTROL PANEL
System Features :
• Up to 8 Doors Access Control Panel

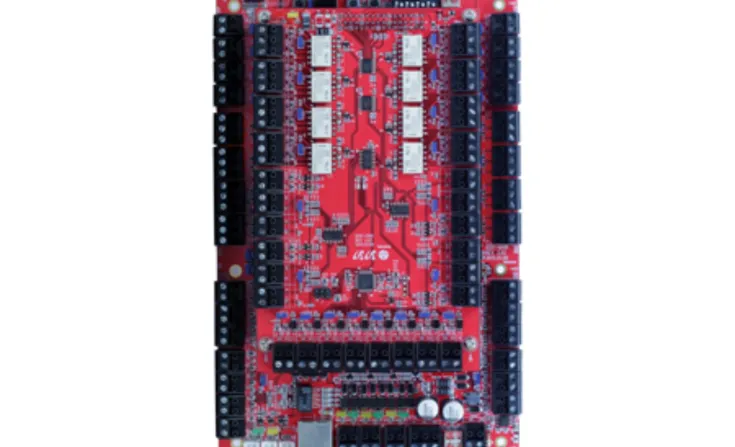

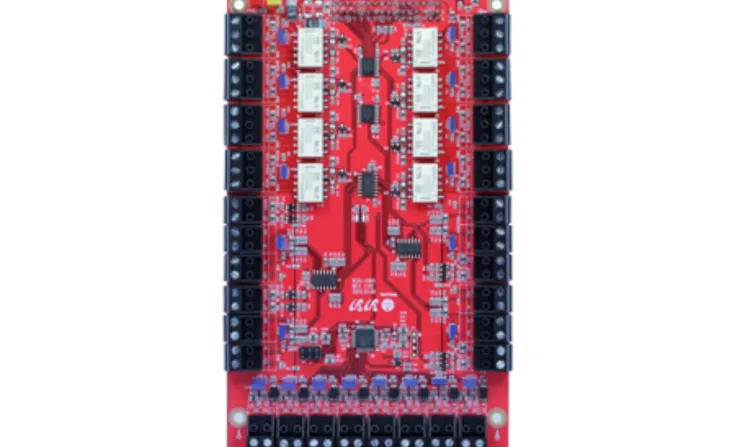

• IEDC: IFDC (4 Doors) + ERIO Expansion Board (4 Doors)

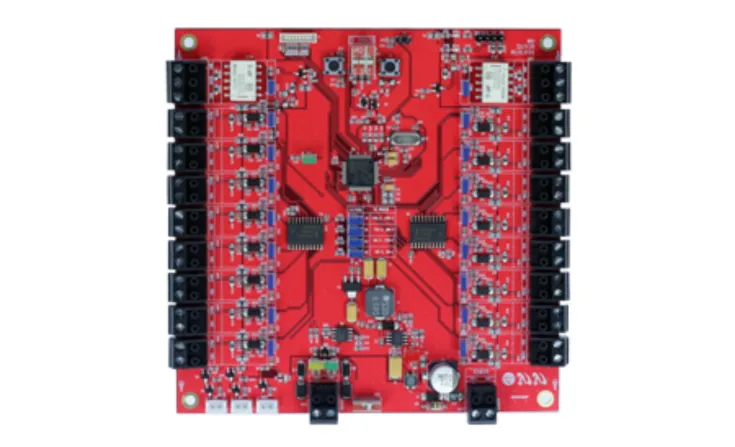

• ERIO (Expansion Reader / Input / Output Board)
- Required for Controlling 5-8 Doors
- 4 Readers, 8 Inputs, 8 Outputs
- Supports Expansion Board IFDC ( Required for Controlling 5-8 Doors)
• Linux Operating System Applied for Higher System Performance and Stability
• Embedded Web Server
- Various Configuration Setting via Web Browser
- Operation without installation of Management Software
• POE(Power over Ethernet)
- POE Plus(802.3at), Max 30W(2.5A)
• Automatic System Reset via Self-Diagnosis (Watchdog Function)
• Programmable and can Process up to 27 different Wiegand Data Formats (up to 53 bits)
• Encrypted Data Transmission (AES 256bit) between IEDC and Communication Server
• 16 Supervised 4-State Input Ports / 16 Output Ports
• LED / Buzzer Control
• Up to 100,000 User IDs / Up to 100,000 Event Buffers
• Local/Zone/Area/Global/Timed/Soft Anti-Passback
• Duress Mode / 2-Men Operation / Arm/Disarm / Guard Tour Function
• Advanced Security Time Schedule Configuration
• Configuration Setting per ID
- Time Schedule, Card Usage Expiration Data, Accessible Reader, Door Opening Time, etc.
• Event Priority Setting
• Alerts when Door Opening Time Exceeds and Forced Door Open
• Real-Time Monitoring of Access Door Status / User Access Status / Alarm Status using the Management Software
• Lost / Stolen Card Setting
• Designed to Withstand ESD(Electro Static Discharge) Shock
• Firmware Upgrade via Remote Control

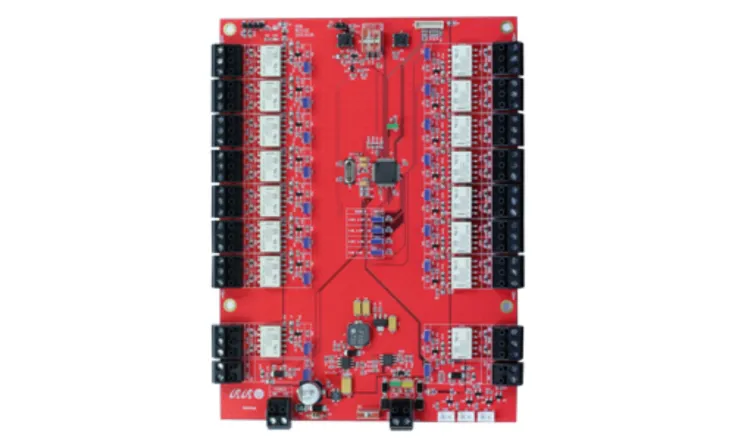

• Supports Expansion Input Board (UIM) / Expansion Output Board (uOM)
- UIM : 16 Inputs, 2 Outputs / Up to 4 UIM per IEDC
- UOM : 16 Outputs, 2 Inputs / Up to 4 UOM per IEDC
• Ethernet / RS485 / RS232 Communication
• Compatible Software : IDTECK ENTERPRISE
• Supports Elevator Access Control System
