Garrett PD500i Walkthrough Metal Detector
Specifications :

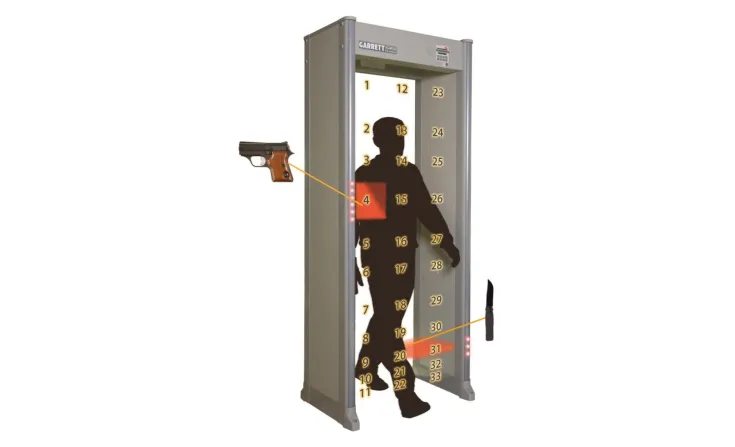

• Detection Zones : 33 zones (left, right and center); visual and audible alarms with a built-in dry contact alarm relay.
• Multi-Unit Synchronization : Synchronization with wired AC power lines or with manual frequency selection for wireless operation

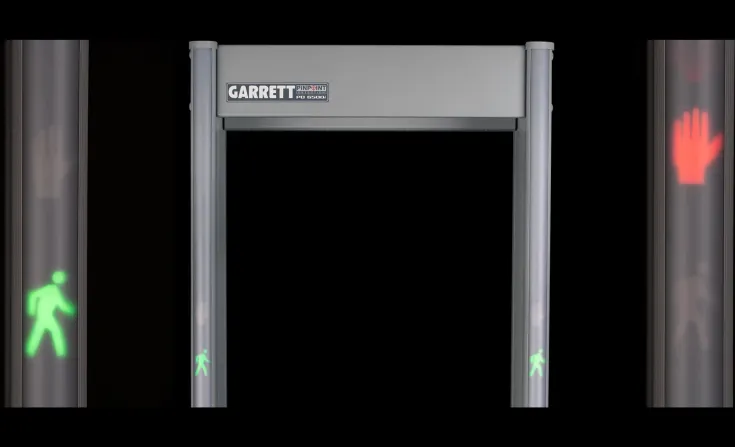

• Visual Displays : LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images.

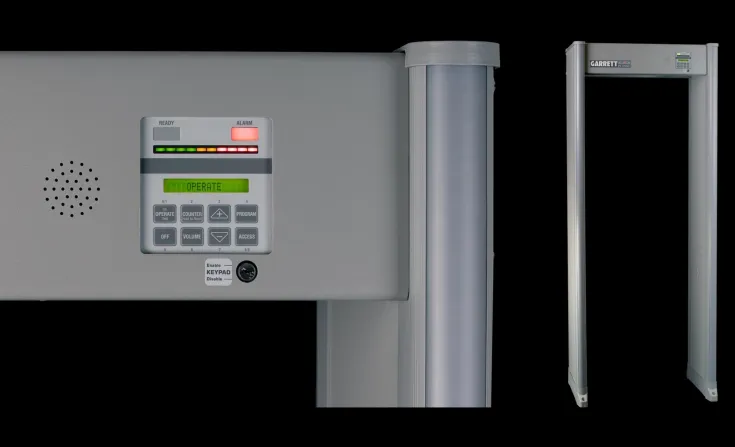

• Access Control : Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad.
• Passageway Interior Size : Width 30" (0.76 m), Height 80" (2.03 m), Depth 23" (0.58 m)
• Overall Exterior Size : Width 35" (0.90 m), Height 87" (2.21 m), Depth 23" (0.58 m)
• Operating Temperatures : -4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing.
• Power : Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.
• Regulatory Information : Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE.
• Weatherproofing : Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection
• Construction : Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
• Control Outputs : Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
• (optional) Remote Control : Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote
• (optional) Networking : Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.
